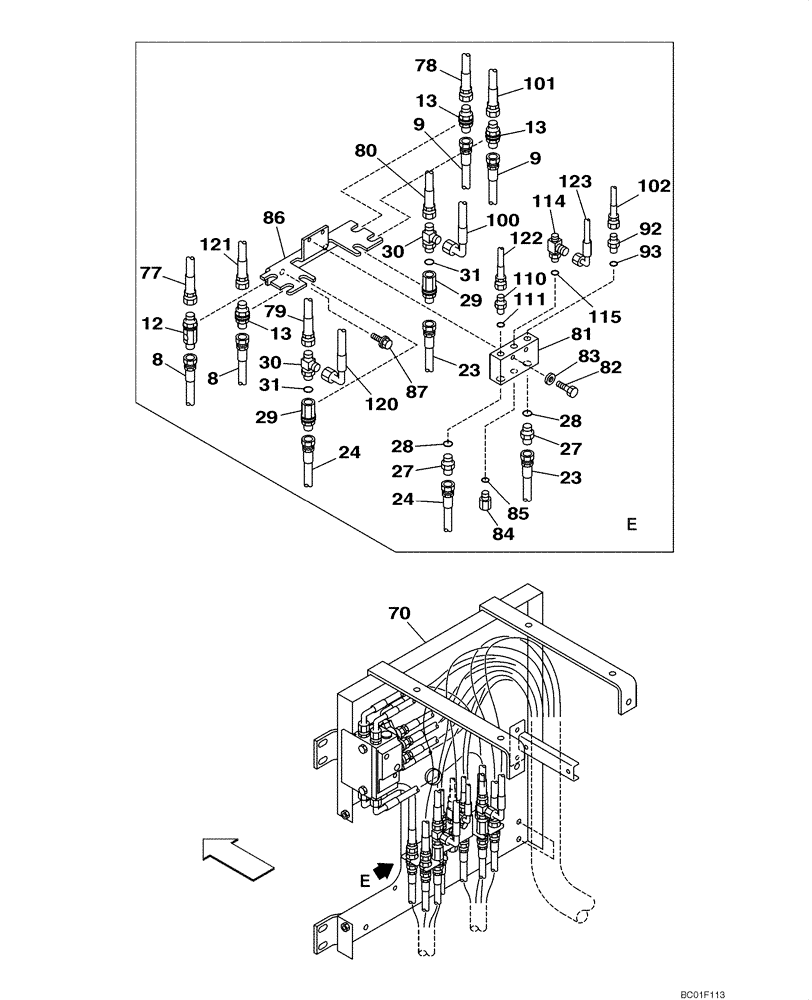

Запчасти Case CX800 (08-28) - PILOT CONTROL LINES, PARTITION - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

Partition

1шт.

Models Without Load Hold

1шт.

8

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

See Figure 08-26

2шт.

9

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-26

2шт.

12

KMJ2292

ADAPTER

1шт.

13

162826A1

ADAPTER

3шт.

23

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

See Figure 08-26

2шт.

24

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-26

2шт.

27

152747A1

ADAPTER

Incl. 28

2шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

KHJ1078

ADAPTER

2шт.

30

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 31

2шт.

31

154475A1

O-RING

1шт.

70

KUJ0320

BRACKET

1шт.

77

KHJ1460

HYDRAULIC HOSE

See Figure 08-27

1шт.

78

KBJ2349

HOSE

See Figure 08-27

1шт.

79

KRJ3932

HOSE

See Figure 08-27

1шт.

80

KTJ1639

HOSE

See Figure 08-27

1шт.

81

KHJ17120

VALVE SECTION

; Replaces KHJ1973

1шт.

82

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

83

153081A1

WASHER

2шт.

84

KHJ1291

ORIFICE

Incl. 85

1шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

KHJ1576

BRACKET

1шт.

87

166052A1

BOLT

With Attached Washer

2шт.

92

152747A1

ADAPTER

Incl. 93

1шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

100

KRJ4970

HOSE

See Figure 08-29

1шт.

101

159063A1

HOSE

See Figure 08-29

1шт.

102

KRJ3894

HOSE

See Figure 08-29

1шт.

110

152747A1

ADAPTER

Incl. 111

1шт.

111

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

114

KHJ2773

TEE

Incl. 115

1шт.

115

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

120

KHJ1184

HYDRAULIC HOSE

See Figure 08-29

1шт.

121

KRJ4764

HOSE

See Figure 08-29

1шт.

122

KRJ4970

HOSE

See Figure 08-29

1шт.

123

159714A1

HOSE,3450.00 mm

See Figure 08-29

1шт.
