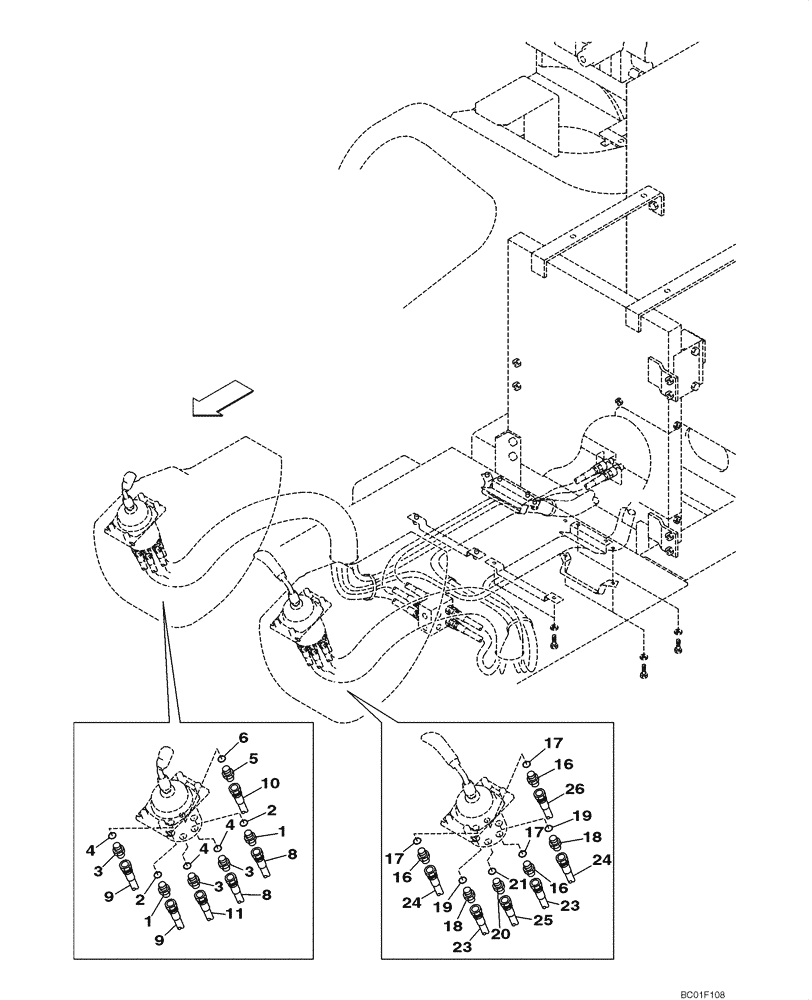

Запчасти Case CX800 (08-26) - PILOT CONTROL LINES, ATTACHMENT - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
Control Lines
1шт.
Models Without Load Hold
1шт.
1
KHJ1402
ADAPTER
Incl. 2
2шт.
2
154475A1
O-RING
1шт.
3
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 4
3шт.
4
154475A1
O-RING
1шт.
5
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
Incl. 6
1шт.
6
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
8
KRJ4336
HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm
See Figure 08-28
2шт.
9
168025A1
HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm
See Figure 08-28
2шт.
10
159214A1
HYDRAULIC HOSE
1200 mm (47-1/4 in), See Figure 08-25
1шт.
11
159213A1
HYDRAULIC HOSE
1150 mm (45-3/8 in), See Figure 08-25
1шт.
16
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 17
3шт.
17
154475A1
O-RING
1шт.
18
KHJ1402
ADAPTER
Incl. 19
2шт.
19
154475A1
O-RING
1шт.
20
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
Incl. 21
1шт.
21
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
23
KHJ1345
HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm
See Figure 08-28
2шт.
24
168025A1
HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm
See Figure 08-28
2шт.
25
159214A1
HYDRAULIC HOSE
1200 mm (47-1/4 in), See Figure 08-25
1шт.
26
159213A1
HYDRAULIC HOSE
1150 mm (45-3/8 in), See Figure 08-25
1шт.
Выбрано товаров: 22
