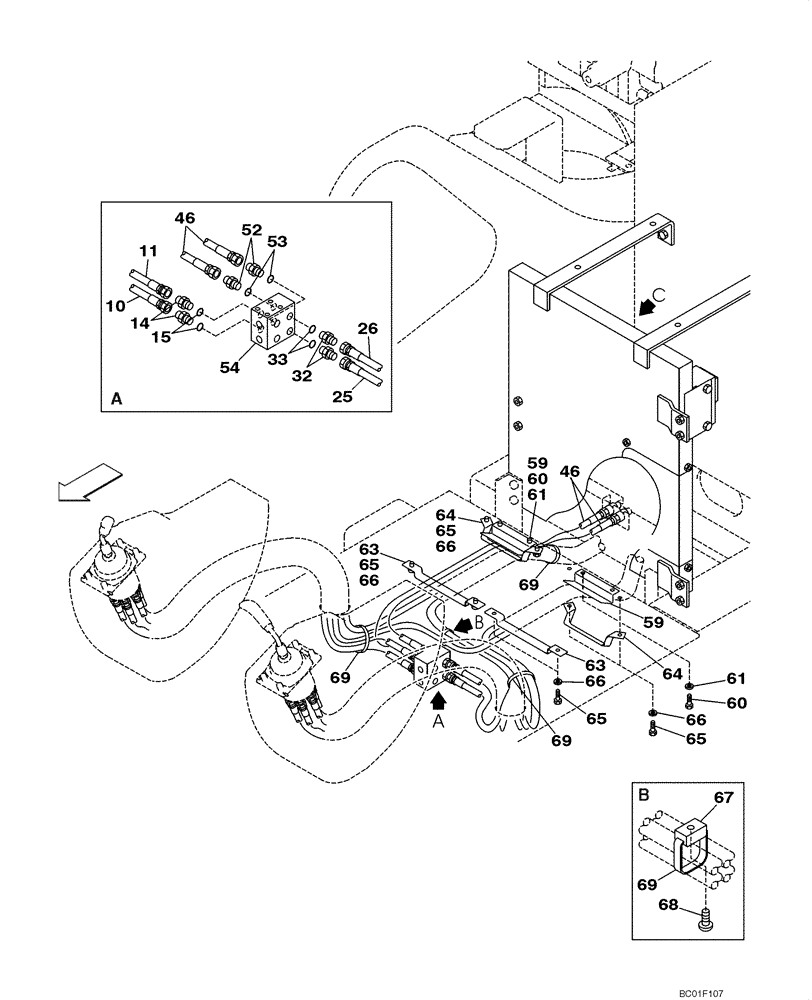

Запчасти Case CX800 (08-25) - PILOT CONTROL LINES, ATTACHMENT - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

Attachment

1шт.

Models Without Load Hold

1шт.

10

159214A1

HYDRAULIC HOSE

1200 mm (47-1/4 in), See Figure 08-26

1шт.

11

159213A1

HYDRAULIC HOSE

1150 mm (45-3/8 in), See Figure 08-26

1шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 15

2шт.

15

154475A1

O-RING

1шт.

25

159214A1

HYDRAULIC HOSE

1200 mm (47-1/4 in), See Figure 08-26

1шт.

26

159213A1

HYDRAULIC HOSE

1150 mm (45-3/8 in), See Figure 08-26

1шт.

32

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 33

2шт.

33

154475A1

O-RING

1шт.

46

152751A1

HOSE,95.00 mm ID x 1000.00 mm

2шт.

52

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 53

2шт.

53

154475A1

O-RING

1шт.

54

KRJ5903

MANIFOLD

Also See Figure 08-23

1шт.

59

KHJ1397

SUPPORT

2шт.

60

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

4шт.

61

153081A1

WASHER

4шт.

63

KHJ1393

CLAMP

2шт.

64

KHJ1396

CLAMP

2шт.

65

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

8шт.

66

153081A1

WASHER

8шт.

67

150860A1

COLLAR

1шт.

68

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

69

150071A1

MOUNTING CLIP

4шт.
