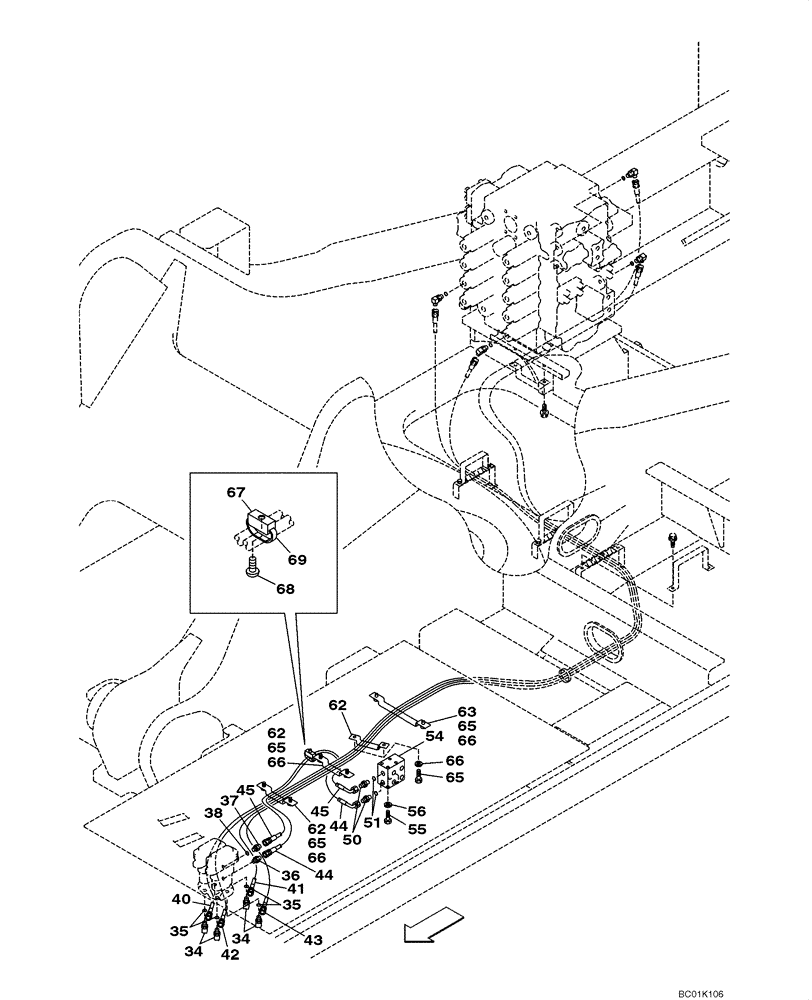

Запчасти Case CX800 (08-23) - PILOT CONTROL LINES, TRAVEL - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

Travel

1шт.

Models Without Load Hold

1шт.

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 35

4шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

161841A1

HYD CONNECTOR

1шт.

37

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

164941A1

HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm

See Figure 08-24

1шт.

41

164941A1

HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm

See Figure 08-24

1шт.

42

164941A1

HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm

See Figure 08-24

1шт.

43

164941A1

HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm

See Figure 08-24

1шт.

44

KAJ3524

HYDRAULIC HOSE

1шт.

45

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

50

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 51

2шт.

51

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

54

KRJ5903

MANIFOLD

Also See Figure 08-25

1шт.

55

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

56

153081A1

WASHER

4шт.

62

KHJ1394

CLAMP

3шт.

63

KHJ1393

CLAMP

1шт.

65

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

8шт.

66

153081A1

WASHER

8шт.

67

150860A1

COLLAR

1шт.

68

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

69

150071A1

MOUNTING CLIP

1шт.
