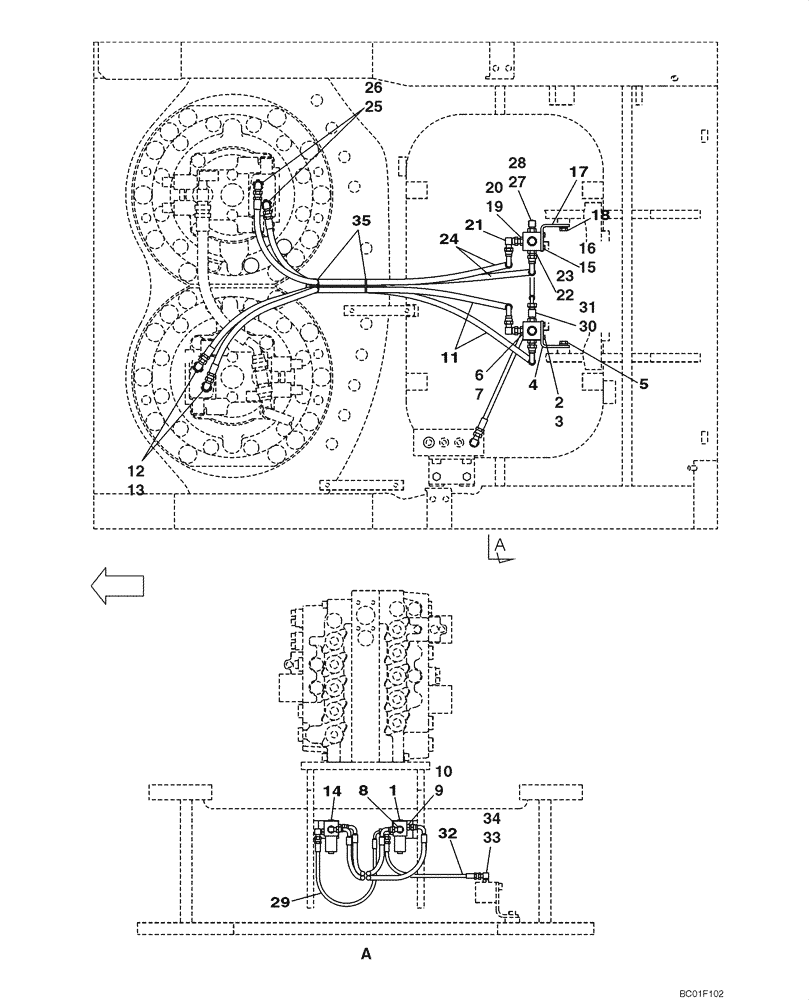

Запчасти Case CX800 (08-22) - HYDRAULICS - FREE SWING (08) - HYDRAULICS

1

159205A1

VALVE

See Figure 08-76

1шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

3

892-11006

LOCK WASHER,M6

2шт.

4

KUJ0150

BRACKET

1шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

6

162366A1

ADAPTER

Incl. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

163814A1

ELBOW

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KUJ0149

HYDRAULIC HOSE,6.30 mm ID x 1700.00 mm

2шт.

12

158784A1

ELBOW

Incl. 13

2шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

159205A1

VALVE

See Figure 08-76

1шт.

15

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

16

892-11006

LOCK WASHER,M6

2шт.

17

KUJ0151

BRACKET

1шт.

18

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

19

162366A1

ADAPTER

Incl. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

163814A1

ELBOW

1шт.

22

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 23

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

24

KUJ0149

HYDRAULIC HOSE,6.30 mm ID x 1700.00 mm

2шт.

25

158784A1

ELBOW

Incl. 26

2шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

27

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

159013A1

HOSE ASSY.

1шт.

30

159497A1

TEE

Incl. 31

1шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

152775A1

HOSE ASSY.

1шт.

33

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 34

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

35

150071A1

MOUNTING CLIP

2шт.
