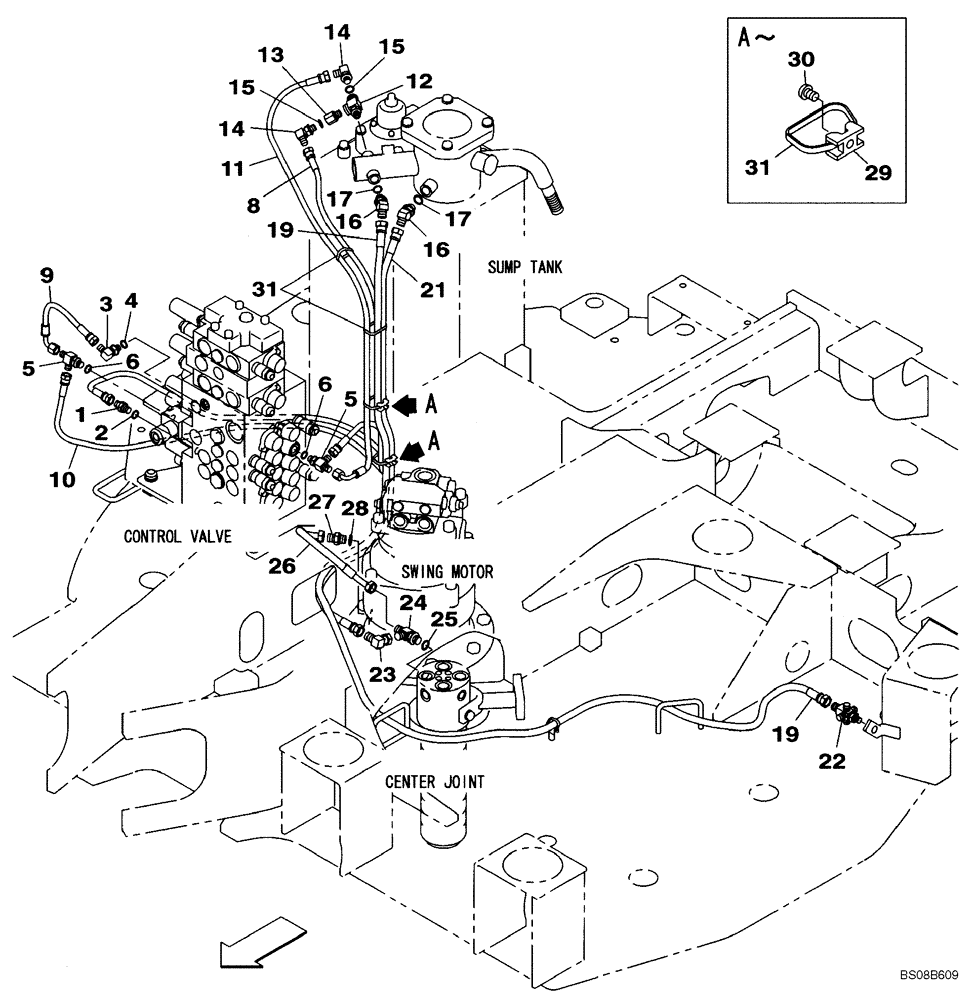

Запчасти Case CX80 (08-15) - HYDRAULICS - DRAIN LINE, STANDARD AND DOUBLE ACTING CIRCUIT (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

159467A1

TUBE

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

KHJ2060

HOSE

6X1700

1шт.

9

KHJ2292

HOSE

6X280

1шт.

10

KHJ2054

HOSE

6X1200

1шт.

11

KHJ2249

HOSE

6X950

1шт.

12

KHJ12530

TEE

1шт.

13

KHJ13640

STUD

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 15

2шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

157584A1

ELBOW

Incl. 17

2шт.

17

154475A1

O-RING

1шт.

19

KHJ2207

HOSE

9X2600

1шт.

21

KHJ15490

HYDRAULIC HOSE

9X1350

1шт.

22

KHJ1966

ADAPTER

1шт.

23

153526A1

ELBOW

1шт.

24

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 25

1шт.

25

154475A1

O-RING

1шт.

26

KHJ2294

HYDRAULIC HOSE,9.50 mm ID x 320.00 mm

1шт.

27

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

28

154475A1

O-RING

1шт.

29

150860A1

COLLAR

2шт.

30

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

31

150496A1

MOUNTING CLIP

4шт.
