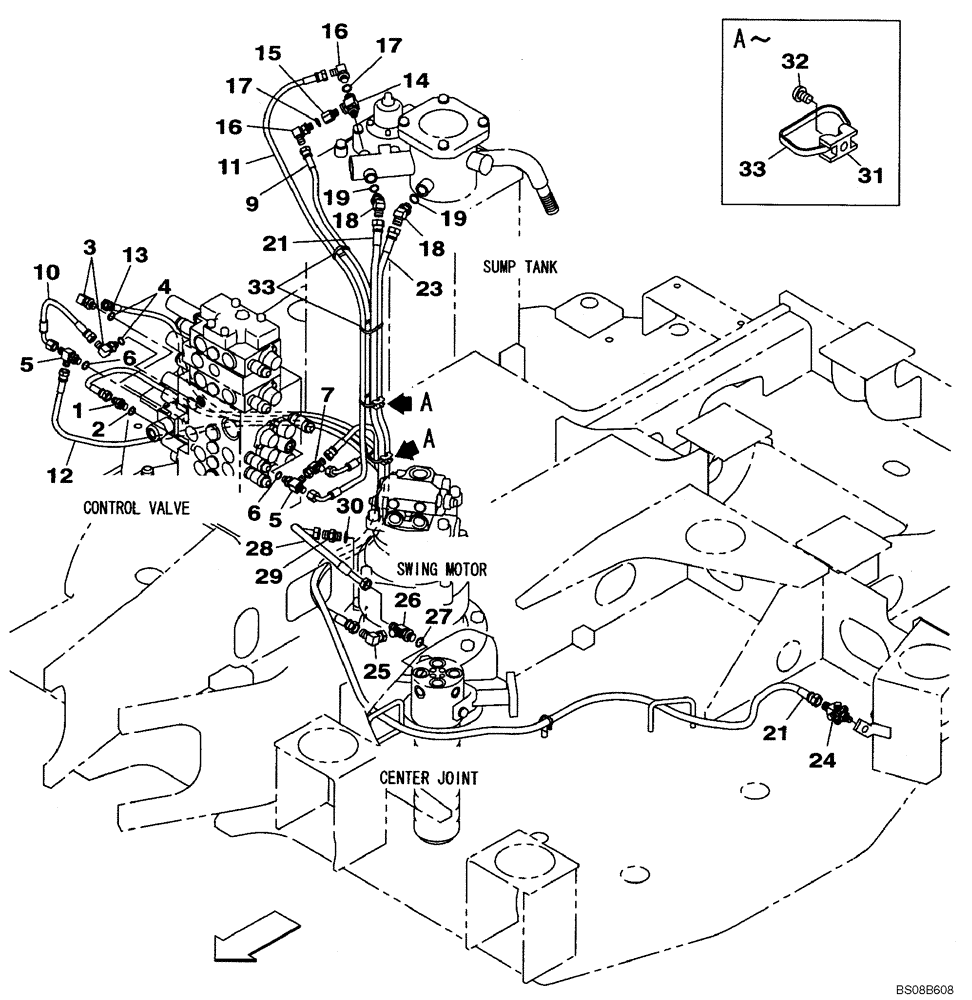

Запчасти Case CX80 (08-14) - HYDRAULICS - DRAIN LINE, SINGLE ACTING CIRCUIT (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 4

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

159497A1

TEE

Incl. 6

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KHJ2130

TEE

1шт.

9

KHJ2060

HOSE

6X1700

1шт.

10

KHJ2292

HOSE

6X280

1шт.

11

KHJ2249

HOSE

6X950

1шт.

12

KHJ2054

HOSE

6X1200

1шт.

13

KHJ2249

HOSE

6X950

1шт.

14

KHJ12530

TEE

1шт.

15

KHJ13640

STUD

1шт.

16

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 17

2шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

157584A1

ELBOW

Incl. 19

2шт.

19

154475A1

O-RING

1шт.

21

KHJ2207

HOSE

9X2600

1шт.

23

KHJ15490

HYDRAULIC HOSE

9X1350

1шт.

24

KHJ1966

ADAPTER

1шт.

25

153526A1

ELBOW

1шт.

26

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 27

1шт.

27

154475A1

O-RING

1шт.

28

KHJ2294

HYDRAULIC HOSE,9.50 mm ID x 320.00 mm

1шт.

29

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 30

1шт.

30

154475A1

O-RING

1шт.

31

150860A1

COLLAR

2шт.

32

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

33

150496A1

MOUNTING CLIP

4шт.
