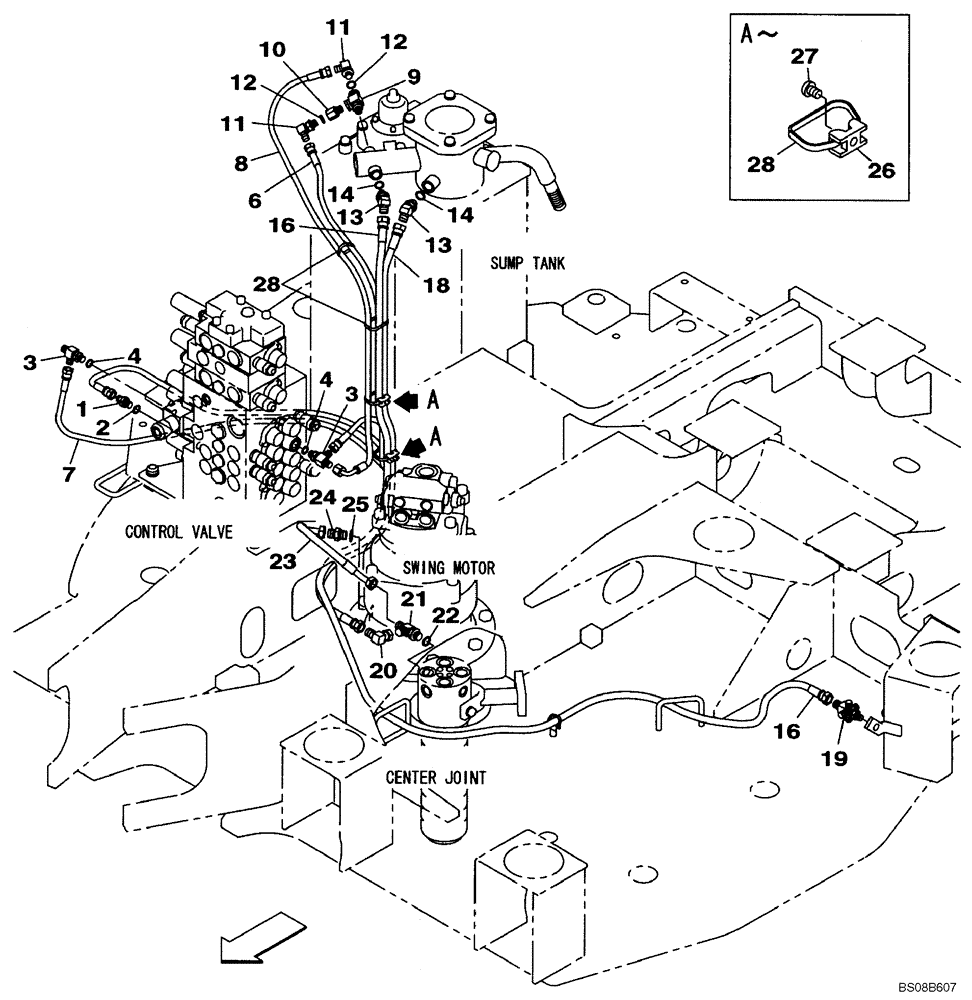

Запчасти Case CX80 (08-13) - HYDRAULICS - DRAIN LINE, MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

3

159497A1

TEE

Incl. 4

1шт.

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

KHJ2060

HOSE

6X1700

1шт.

7

KHJ2054

HOSE

6X1200

1шт.

8

KHJ2249

HOSE

6X950

1шт.

9

KHJ12530

TEE

1шт.

10

KHJ13640

STUD

1шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 12

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

157584A1

ELBOW

Incl. 14

2шт.

14

154475A1

O-RING

1шт.

16

KHJ2207

HOSE

9X22600

1шт.

18

KHJ15490

HYDRAULIC HOSE

9X1350

1шт.

19

KHJ1966

ADAPTER

1шт.

20

153526A1

ELBOW

1шт.

21

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 22

1шт.

22

154475A1

O-RING

1шт.

23

KHJ2294

HYDRAULIC HOSE,9.50 mm ID x 320.00 mm

1шт.

24

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 25

1шт.

25

154475A1

O-RING

1шт.

26

150860A1

COLLAR

2шт.

27

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

28

150496A1

MOUNTING CLIP

4шт.
