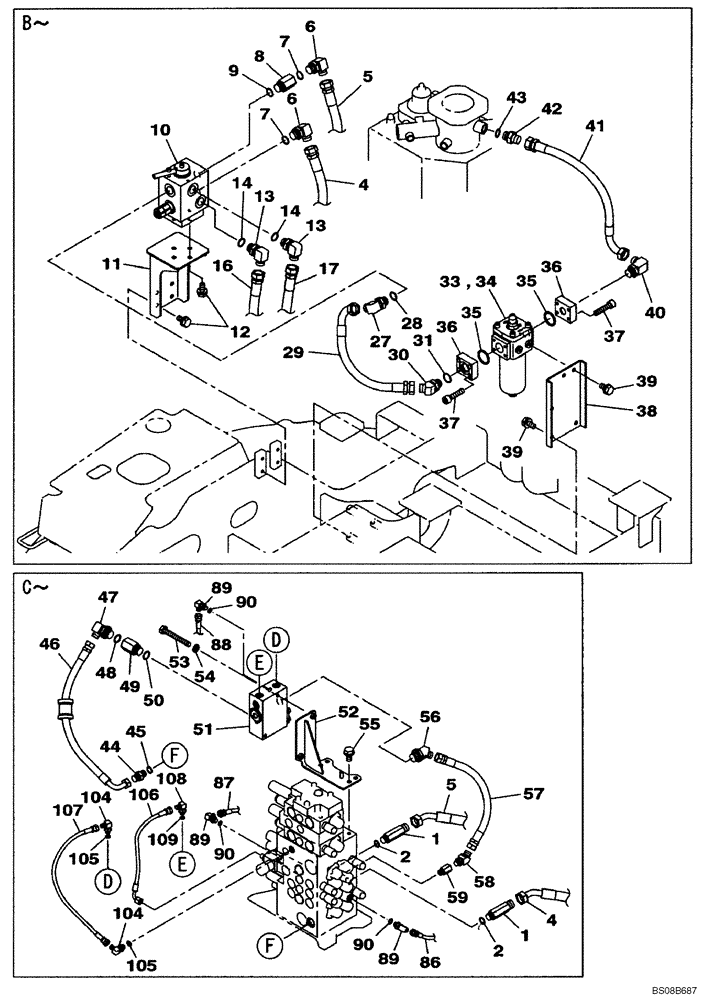

Запчасти Case CX80 (08-11) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

1

163287A1

STUD

Incl. Ref. 2

2шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

KAJ5136

HYDRAULIC HOSE,15.88 mm ID x 850.00 mm

1шт.

5

KAJ5137

HYDRAULIC HOSE,15.88 mm ID x 1000.00 mm

1шт.

6

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. Ref. 7

2шт.

7

154503A1

O-RING

1шт.

8

152012A1

ELEC CONNECTOR

Incl. Ref. 9

1шт.

9

154503A1

O-RING

1шт.

10

KHJ2020

HYDRAULIC VALVE

See Fig. 08-46

1шт.

11

KAJ5144

HOLDER

1шт.

12

166351A1

BOLT,Sems, M10 x 20mm

8шт.

13

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. Ref. 14

2шт.

14

154503A1

O-RING

1шт.

16

KAJ5138

HYDRAULIC HOSE,15.88 mm ID x 3300.00 mm

1шт.

17

KAJ5139

HYDRAULIC HOSE,15.9mm ID x 3400mm L

1шт.

27

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. Ref. 28

1шт.

28

154503A1

O-RING

1шт.

29

KAJ4760

HYDRAULIC HOSE

19X41

1шт.

30

157586A1

ELBOW

Incl. Ref. 31

1шт.

31

154503A1

O-RING

1шт.

34

159706A1

INDICATOR

Incl. Ref. 35

1шт.

35

154569A1

O-RING

2шт.

36

163275A1

FLANGE

2шт.

37

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

8шт.

38

KAJ5145

HOLDER

1шт.

39

166351A1

BOLT,Sems, M10 x 20mm

5шт.

40

UCJ0991

ELBOW

1шт.

41

KRJ5666

HYDRAULIC HOSE

19X55

1шт.

42

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. Ref. 43

1шт.

43

154503A1

O-RING

1шт.

44

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. Ref. 45

1шт.

45

154487A1

O-RING

1шт.

46

KAJ4721

HYDRAULIC HOSE,12.70 mm ID x 560.00 mm

1шт.

47

157936A1

ELBOW

Incl. Ref. 48

1шт.

48

154503A1

O-RING

1шт.

49

152012A1

ELEC CONNECTOR

Incl. Ref. 50

1шт.

50

154503A1

O-RING

1шт.

51

KHJ1473

VALVE

See Fig. 08-47

1шт.

52

KAJ10860

BRACKET

1шт.

53

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

54

892-11010

LOCK WASHER,M10

2шт.

55

166052A1

BOLT

2шт.

56

KHJ2243

ELBOW

1шт.

57

KAJ5140

HYDRAULIC HOSE,12.70 mm ID x 420.00 mm

1шт.

58

163004A1

ELBOW

1шт.

59

KHV0373

STUD

1шт.

86

KHJ2063

HOSE

6X1850

1шт.

87

KHJ2067

HOSE

6X2200

1шт.

88

KHJ2069

HOSE

6X2300

1шт.

89

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. Ref. 90

3шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

104

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. Ref. 105

2шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

KHJ2179

HOSE

6X450

1шт.

107

KHJ2142

HOSE

6X500

1шт.

108

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. Ref. 109

1шт.

109

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
