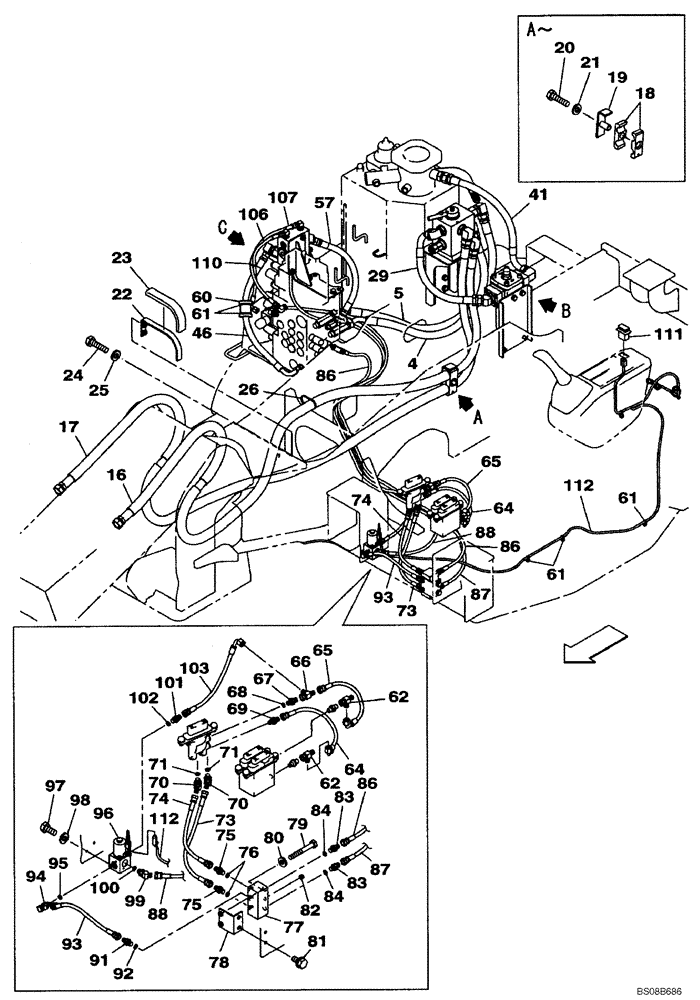

Запчасти Case CX80 (08-10) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

4

KAJ5136

HYDRAULIC HOSE,15.88 mm ID x 850.00 mm

1шт.

5

KAJ5137

HYDRAULIC HOSE,15.88 mm ID x 1000.00 mm

1шт.

16

KAJ5138

HYDRAULIC HOSE,15.88 mm ID x 3300.00 mm

1шт.

17

KAJ5139

HYDRAULIC HOSE,15.9mm ID x 3400mm L

1шт.

18

KAJ5183

HOSE CLAMP

2шт.

19

KAJ5156

PLATE

1шт.

20

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

21

150811A1

WASHER

1шт.

22

KAJ5199

HOLDER

1шт.

23

162189A1

GROMMET

1шт.

24

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

25

150409A1

WASHER

2шт.

26

150498A1

MOUNTING CLIP

1шт.

27

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

29

KAJ4760

HYDRAULIC HOSE

19X41

1шт.

41

KRJ5666

HYDRAULIC HOSE

19X55

1шт.

46

KAJ4721

HYDRAULIC HOSE,12.70 mm ID x 560.00 mm

1шт.

57

KAJ5140

HYDRAULIC HOSE,12.70 mm ID x 420.00 mm

1шт.

60

KHJ2022

HOSE CLAMP

1шт.

61

150496A1

MOUNTING CLIP

3шт.

62

KHJ2130

TEE

2шт.

64

KHJ2084

HOSE

6X350

1шт.

65

KHJ2238

HOSE

6X320

1шт.

66

KHJ2130

TEE

1шт.

67

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. Ref. 68

1шт.

68

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

69

161841A1

HYD CONNECTOR

1шт.

70

150933A1

ELBOW

Incl. Ref. 71

2шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

73

KHJ2237

HOSE

6X400

1шт.

74

KHJ2044

HOSE,6.3mm ID x 350mm L

6X350

1шт.

75

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. Ref. 76

2шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

KHJ17100

VALVE PRESSURE RELIE

1шт.

78

KAJ4715

BRACKET

1шт.

79

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

80

153081A1

WASHER

2шт.

81

166346A1

BOLT,Sems, M10

2шт.

82

150821A1

PLUG

1шт.

83

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. Ref. 84

2шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

KHJ2063

HOSE

6X1850

1шт.

87

KHJ2067

HOSE

6X2200

1шт.

88

KHJ2069

HOSE

6X2300

1шт.

91

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. Ref. 92

1шт.

92

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

93

KHJ2042

HOSE

6X300

1шт.

94

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. Ref. 95

1шт.

95

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

96

162538A1

VALVE

See Fig. 08-34

1шт.

97

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

98

183-106VR

SPRING WASHER

2шт.

99

150933A1

ELBOW

Incl. Ref. 100

1шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. Ref. 102

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KHJ2238

HOSE

6X320

1шт.

106

KHJ2179

HOSE

6X450

1шт.

107

KHJ2142

HOSE

6X500

1шт.

110

150496A1

MOUNTING CLIP

1шт.

111

KHR3121

SWITCH

1шт.

112

KAR10410

HARNESS

1шт.
