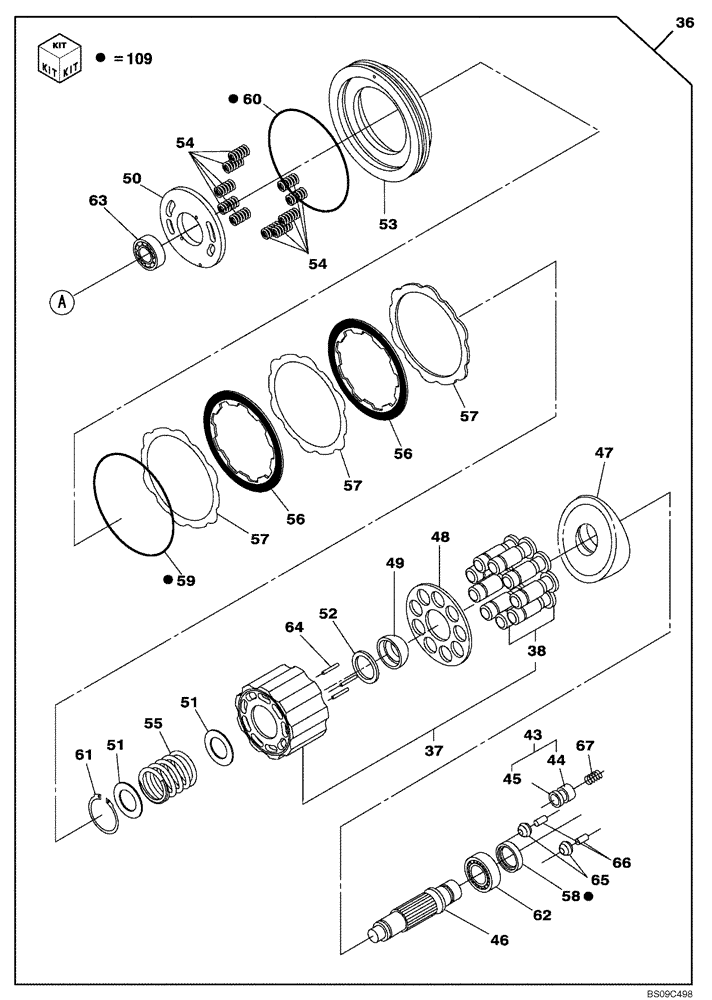

Запчасти Case CX80 (06-04) - TRAVEL MOTOR (06) - POWER TRAIN

36

LJ017130

HYDRAULIC MOTOR

Incl. 37 - 67

1шт.

37

LZ006950

REPAIR KIT

Incl. 38

1шт.

38

LJ017140

PISTON

1шт.

43

165262A1

PISTON

1шт.

46

LB013370

SHAFT

1шт.

47

LR017620

PLATE

1шт.

48

LUM0205

RETAINER

1шт.

49

165304A1

BALL BEARING

1шт.

50

LR017630

PLATE

1шт.

51

165289A1

WASHER

2шт.

52

165291A1

WASHER

1шт.

53

165263A1

PISTON

1шт.

54

LG00449

SPRING

1шт.

55

LG00510

SPRING

1шт.

56

165296A1

LARGE PLATE

PLATE, LARGE

2шт.

57

165295A1

LARGE PLATE

PLATE, LARGE

3шт.

58

LE018090

OIL SEAL

1шт.

59

165219A1

O-RING

1шт.

60

165220A1

O-RING

1шт.

61

165221A1

RING, SNAP

RING SNAP

1шт.

62

LB013380

BALL BEARING

1шт.

63

LB013390

BALL BEARING

1шт.

64

165288A1

BEARING, NEEDLE

3шт.

65

165287A1

BUSHING

2шт.

66

161820A1

COTTER PIN

2шт.

67

165281A1

SPRING

1шт.

109

LZ009670

SEAL KIT

Incl. 58 - 60, Also Ref. 3, 23, 24, 29, 30 Figure 06-03 And Ref. 75 - 78, 81, 82, 101, 102 Figure 06-05

1шт.
