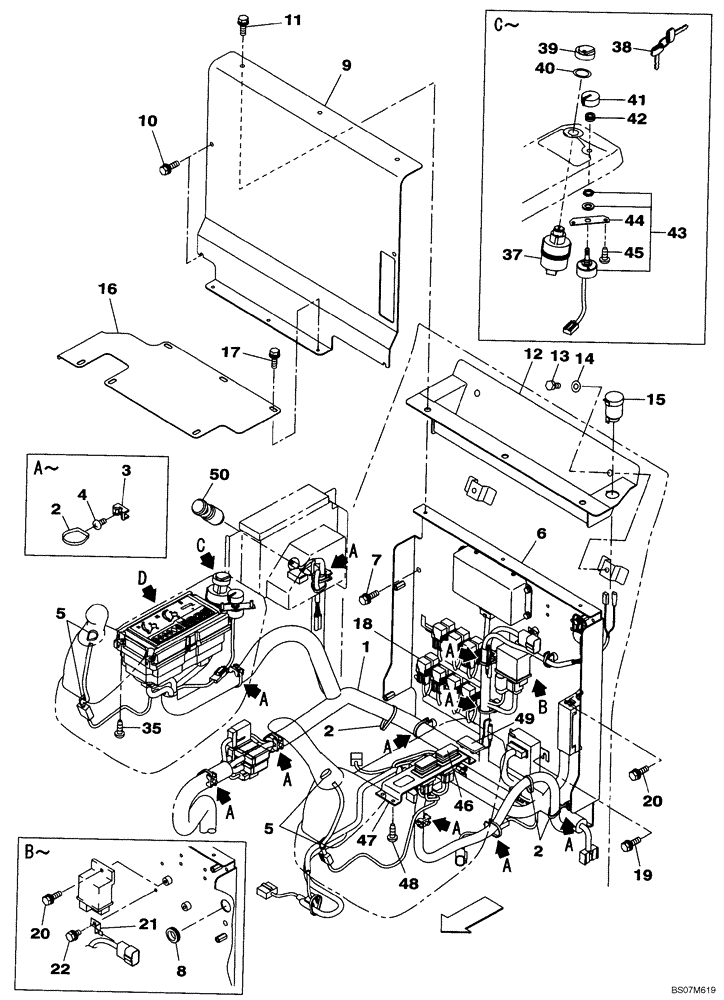

Запчасти Case CX80 (04-03) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS

1

KAR10711

HARNESS

HARNESS

1шт.

2

150496A1

MOUNTING CLIP

14шт.

3

150860A1

COLLAR

10шт.

4

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

10шт.

5

150067A1

MOUNTING CLIP

4шт.

6

KAR10950

BRACKET

1шт.

7

166345A1

BOLT

M8X16

4шт.

8

KMR0897

GROMMET

1шт.

9

KAR10960

COVER

1шт.

10

KHN2131

BOLT

4шт.

11

KHN2132

BOLT,Hex Flg Hd, M6 x 16

3шт.

12

KHR19600

COVER

1шт.

13

162571A1

BOLT,High Strength, M8 x 16mm

M8X16

2шт.

14

159500A1

WASHER

2шт.

15

KHR2501

SOCKET

1шт.

16

KHR16670

COVER

1шт.

17

KHN2132

BOLT,Hex Flg Hd, M6 x 16

6шт.

18

KHR3802

RELAY

10шт.

19

159602A1

BOLT,Sems, Hex, M6 x 16mm

M616

2шт.

20

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

M6X20

3шт.

21

165405A1

CLIP

1шт.

22

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M16X12

1шт.

35

KHR3806

SELF-TAP SCREW

4шт.

37

KHR3078

IGNITION SWITCH

1шт.

38

KHR20070

IGNITION KEY

KEY, CASE

2шт.

39

KHR3080

CAP

1шт.

40

KHR3081

WASHER

1шт.

41

KHR2750

KNOB

1шт.

42

NSS

NOT SOLD SEPARAT

PACKING

1шт.

43

KHR2751

SWITCH

THROTTLE VOLUME

1шт.

44

KHR3561

BRACKET

1шт.

45

KHR2737

SELF-TAP SCREW

M5X14

2шт.

46

KHR3886

SWITCH

1шт.

47

KHR4168

COVER

1шт.

48

KHR2737

SELF-TAP SCREW

M5X14

4шт.

49

KHR2913

CAP

1шт.

50

KHR2488

LIGHTER, CIGARETTE

1шт.
