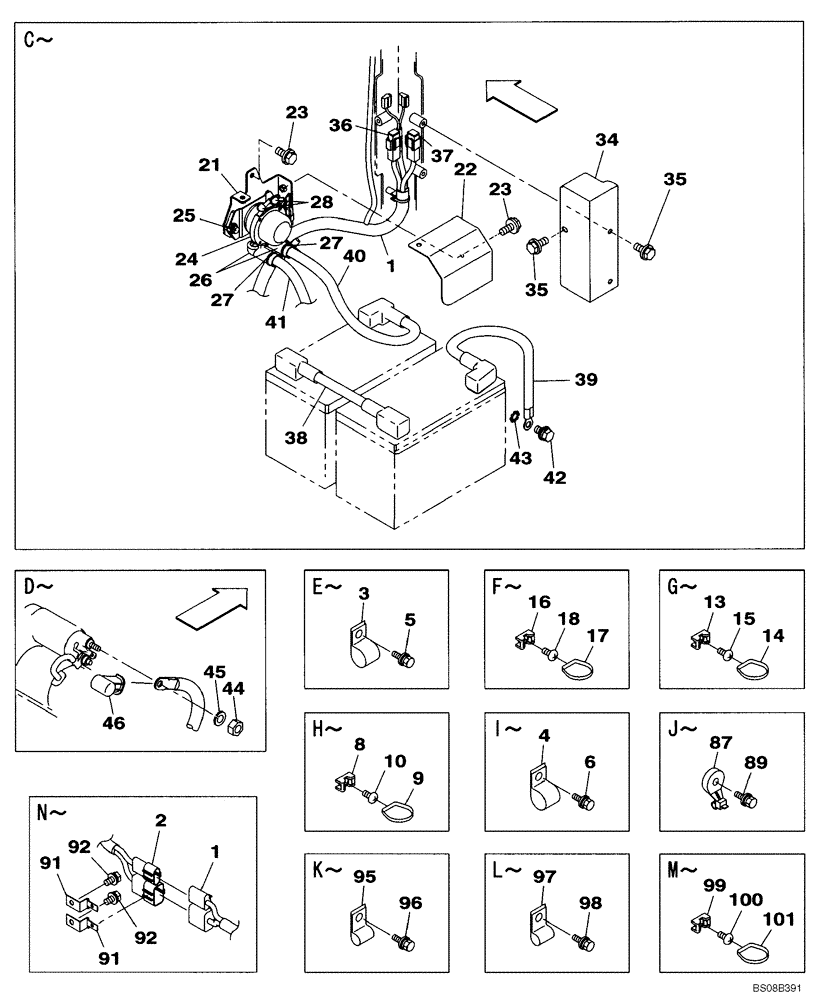

Запчасти Case CX80 (04-01) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE - BATTERY (04) - ELECTRICAL SYSTEMS

1

KAR11121

HARNESS

1шт.

2

KAR11210

HARNESS

1шт.

3

162150A1

CLAMP

3шт.

4

157807A1

COLLAR

1шт.

5

167518A1

BOLT

3шт.

6

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

8

150860A1

COLLAR

1шт.

9

150496A1

MOUNTING CLIP

1шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

13

150860A1

COLLAR

3шт.

14

150496A1

MOUNTING CLIP

3шт.

15

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

16

150860A1

COLLAR

8шт.

17

150496A1

MOUNTING CLIP

8шт.

18

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

8шт.

21

KAR11350

BRACKET

Replaces KAR10770

1шт.

22

KAR11340

COVER

Replaces KAR10780

1шт.

23

166350A1

BOLT

M8X20

2-4шт.

24

159897A1

RELAY

1шт.

23

166345A1

BOLT

2шт.

25

KHJ1215

BOLT,Spcl

M8X25

2шт.

26

162212A1

TERMINAL CONNECTOR

2шт.

27

150067A1

MOUNTING CLIP

2шт.

28

159171A1

CAP

2шт.

34

KAR10761

BRACKET

BRACKET, FUSE

1шт.

35

166345A1

BOLT

Replaces 166350A1

3шт.

36

KHR3850

FUSE

1шт.

37

159902A1

FUSE

65A fuse - starter

1шт.

38

KHR15070

NEG BATTERY CABLE

Battery

1шт.

39

KHR12370

POS BATTERY CABLE

Battery

1шт.

40

KHR12170

POS BATTERY CABLE

Battery L=520mm

1шт.

41

KHR20160

ELECTRIC CABLE

1шт.

42

167320A1

BOLT,Spcl, M8 x 20mm

M8X20

1шт.

43

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

44

162R008SR

SPRING WASHER

M8

1шт.

45

183-108VR

SPRING WASHER

1шт.

46

159184A1

CAP

1шт.

87

KHR2583

CLAMP

1шт.

89

159602A1

BOLT,Sems, Hex, M6 x 16mm

3шт.

91

165405A1

CLIP

3шт.

92

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

3шт.

95

157805A1

COLLAR

4шт.

96

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

4шт.

97

157805A1

COLLAR

2шт.

98

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

99

150860A1

COLLAR

1шт.

100

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

101

150496A1

MOUNTING CLIP

1шт.
