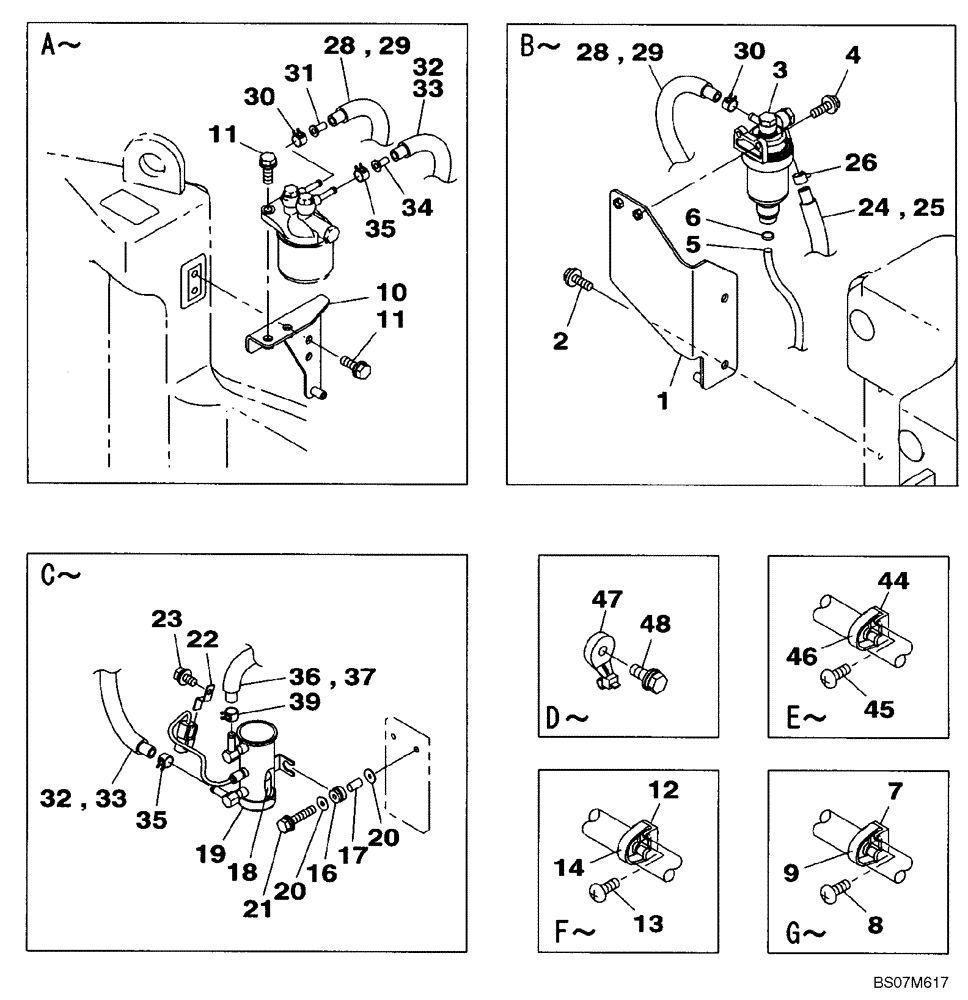

Запчасти Case CX80 (03-03) - FUEL LINES (03) - FUEL SYSTEM

1

KAH11700

BRACKET

1шт.

2

166347A1

BOLT,Sems, M10 x 30mm

M10X30

2шт.

3

151071A1

WATER TRAP

1шт.

4

167182A1

BOLT,Sems, M8 x 25mm

M8X25

2шт.

5

157604A1

HOSE

1050 mm, Replaces KHH11830

1шт.

6

150067A1

MOUNTING CLIP

1шт.

7

150860A1

COLLAR

1шт.

8

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

9

150496A1

MOUNTING CLIP

1шт.

10

KAH11540

BRACKET

1шт.

11

166347A1

BOLT,Sems, M10 x 30mm

M10X30

4шт.

12

150860A1

COLLAR

1шт.

13

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

14

150496A1

MOUNTING CLIP

1шт.

KHH11880

FEED PUMP

Incl. 16 - 19

1шт.

16

KHH10470

GROMMET

2шт.

17

KHH10480

COLLAR

2шт.

18

KHH11890

FILTER SCREEN

1шт.

19

KHH11900

GASKET

1шт.

20

150529A1

WASHER

4шт.

21

162056A1

BOLT,Spcl, M6 x 30mm

M6X30

2шт.

22

KHR16450

CLIP

1шт.

23

167518A1

BOLT

M8X16

1шт.

24

KHH12460

FUEL HOSE,2800.00 mm

1.шт.

25

KHR17670

PLASTIC-RUBBER TUBE

1шт.

26

KHH0405

MOUNTING CLIP

2шт.

28

KHH12470

FUEL HOSE,1400.00 mm

1шт.

29

158063A1

PLASTIC-RUBBER TUBE

1шт.

30

KHH0405

MOUNTING CLIP

2шт.

31

KAH11560

SPACER

1шт.

32

KHH12340

FUEL HOSE,1000.00 mm

1шт.

33

KHR13380

PLASTIC-RUBBER TUBE

1шт.

34

KAH11560

SPACER

1шт.

35

KHH0405

MOUNTING CLIP

2шт.

36

KHH12360

FUEL HOSE

1шт.

37

KHR4065

PLASTIC-RUBBER TUBE

1шт.

39

KHH0405

MOUNTING CLIP

2шт.

44

150860A1

COLLAR

12шт.

45

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

12шт.

46

150496A1

MOUNTING CLIP

12шт.

47

KHR2584

CLAMP

1шт.

48

KHJ1215

BOLT,Spcl

M8X25

1шт.
