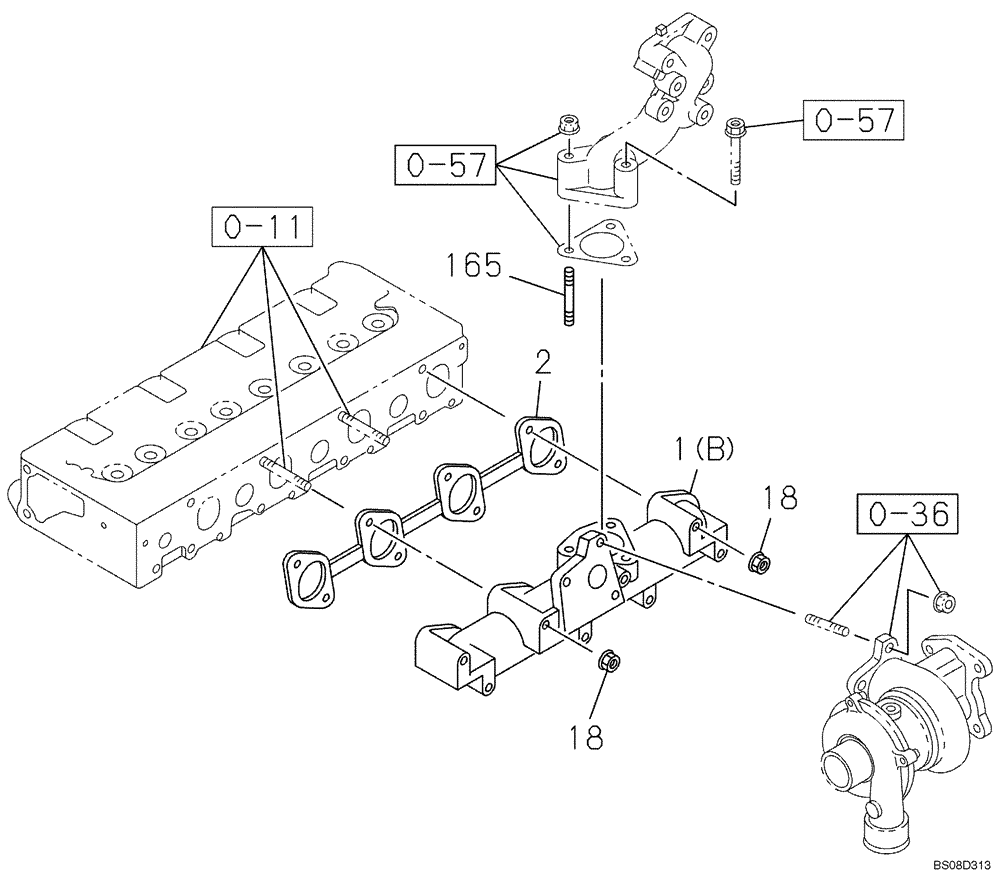

Запчасти Case CX80 (02-17) - EXHAUST PIPE (02) - ENGINE

0-11

REF

INSTRUCTION

See Figure 02-07

1шт.

0-36

REF

INSTRUCTION

See Figure 02-22

1шт.

0-57

REF

INSTRUCTION

See Figure 02-26

1шт.

1

87730492

EXHAUST MANIFOLD

1шт.

2

87730493

GASKET

1шт.

18

87598285

NUT

8шт.

165

87730494

STUD

2шт.
