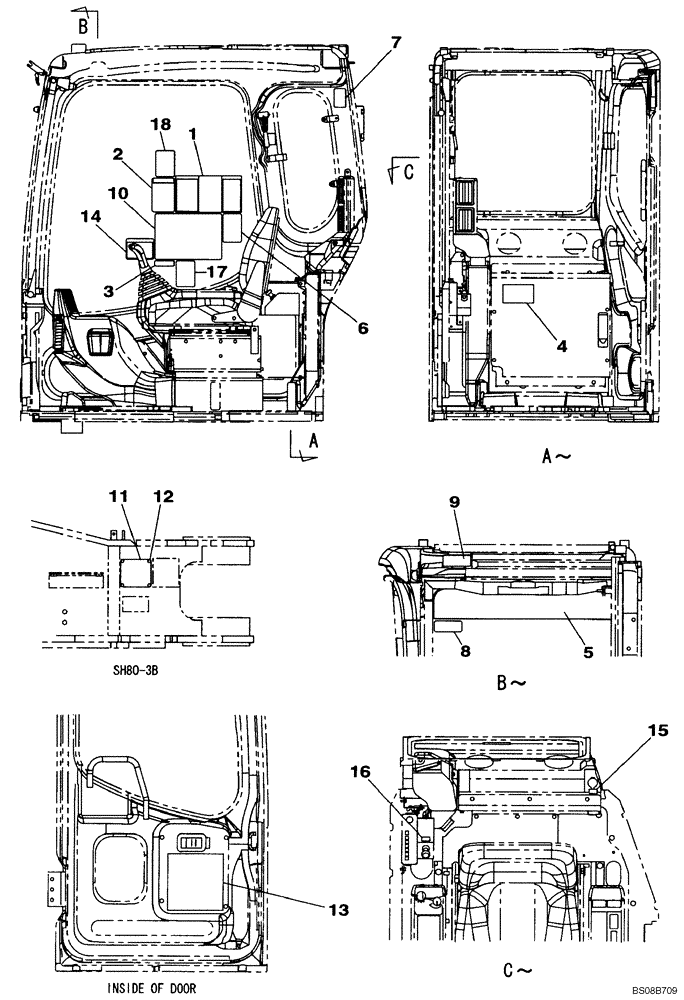

Запчасти Case CX80 (09-45) - DECAL - OPERATORS COMPARTMENT (09) - CHASSIS

See Figure 09-46 for Details

1шт.

1

KHP1537

DECAL

Danger / Caution

1шт.

2

KHP1316

WARNING DECAL

Caution, Interference

1шт.

3

KAP0859

DECAL

Blade, Control

1шт.

4

KAP10620

DECAL

Position of Relay

1шт.

5

KHP1742

DECAL

Logo

1шт.

6

KHP1782

WARNING DECAL

Warning

1шт.

7

KHP1822

WARNING DECAL

Caution, Falling Window

1шт.

8

KHP1540

WARNING DECAL

Notice, Window Cleaning

1шт.

9

KHP1802

WARNING DECAL

Caution

1шт.

10

KAP11130

DECAL

LABEL, Lift Capacities

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE, SERIAL NUMBER

1шт.

12

NSS

NOT SOLD SEPARAT

RIVET

4шт.

13

KAP11140

DECAL

LABEL, LUB

1шт.

14

162140A1

WARNING DECAL

Warning, Control Modification

1шт.

15

KHP1803

WARNING DECAL

12 V

1шт.

16

KHP1804

WARNING DECAL

24 V

1шт.

17

KHP1820

WARNING DECAL

Warning, Pedal Lock

1шт.

18

KHP10030

DECAL

Caution, Attachment Impact Hazard

1шт.
