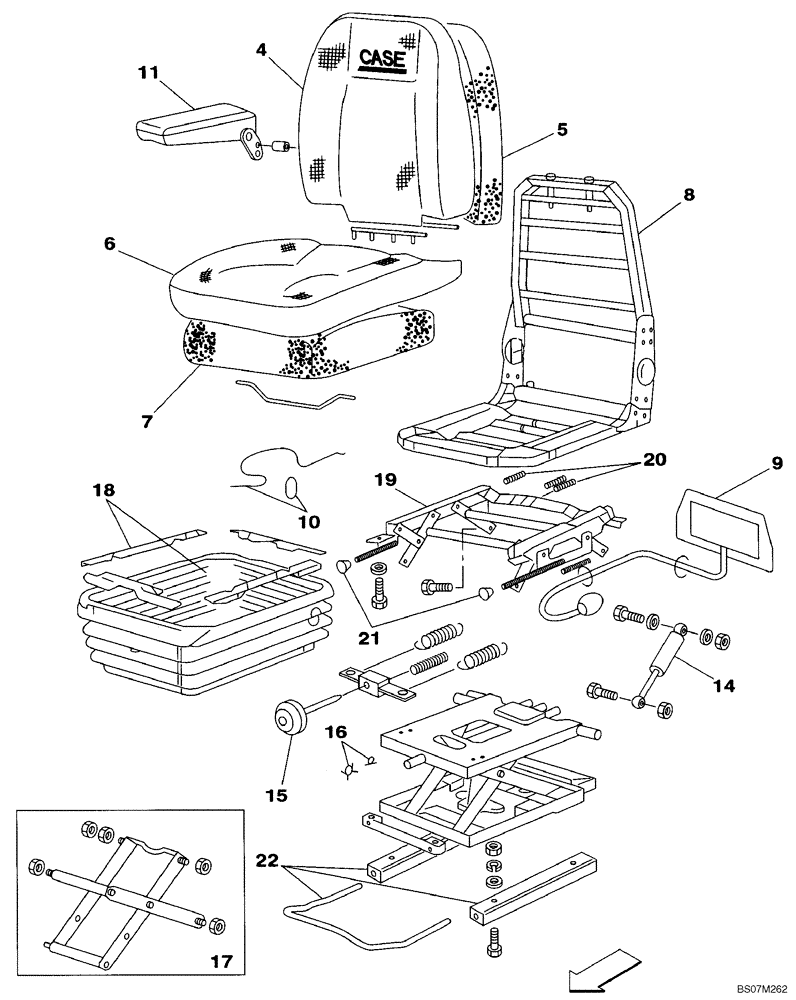

Запчасти Case CX80 (09-17) - SEAT (09) - CHASSIS

4

87350972

SEAT COVER

1шт.

5

H4841461

FOAM

BACK

1шт.

6

87350973

SEAT COVER

1шт.

7

J4841462

FOAM

BOTTOM

1шт.

8

307043A1

FRAMEWORK

1шт.

9

307044A1

KIT

1шт.

10

D2447088

CABLE

KIT, RECLINER

1шт.

11

KHN3250

ARMREST

Kit Includes Left and Right Hand Armrest with Hardware

1шт.

13

KHN2189

SUSPENSION

1шт.

15

KHN2205

HANDLE

1шт.

16

KHN2206

STOP

1шт.

17

KHN2207

SPRING SEAT

1шт.

18

KHN2190

BELLOWS

1шт.

19

KHN2200

FRAME

1шт.

20

KHN2201

SPRING KIT

1шт.

21

KHN2202

BUTTON

1шт.
