(09-06) - BOOM CYLINDER, MOUNTING - MODELS WITH LOAD HOLD

Запчасти Case CX80 (09-06) - BOOM CYLINDER, MOUNTING - MODELS WITH LOAD HOLD (09) - CHASSIS

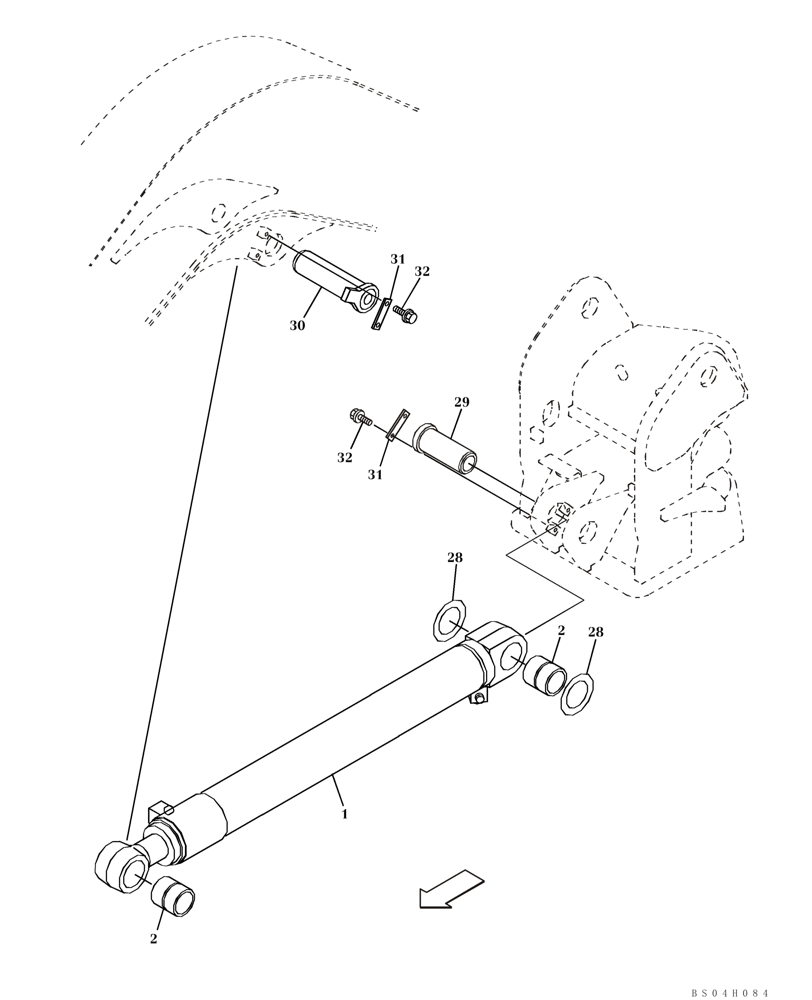

Схема запчастей Case CX80 - (09-06) - BOOM CYLINDER, MOUNTING - MODELS WITH LOAD HOLD (09) - CHASSIS
28
2
bs04h084
31
32
31
2
32
1
29
30
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV2039

HYDRAULIC CYLINDER

Boom; Incl. 2; See Figure 08-31

1шт.

2

169105A1

SELF LUB RING

2шт.

28

161643A1

SHIM,66mm ID x 130mm OD x 1.2mm Thk

1шт.

29

KAV2827

PIN

1шт.

30

KAV2071

PIN

1шт.

31

KHV0456

PLATE

2шт.

32

166351A1

BOLT,Sems, M10 x 20mm

4шт.
