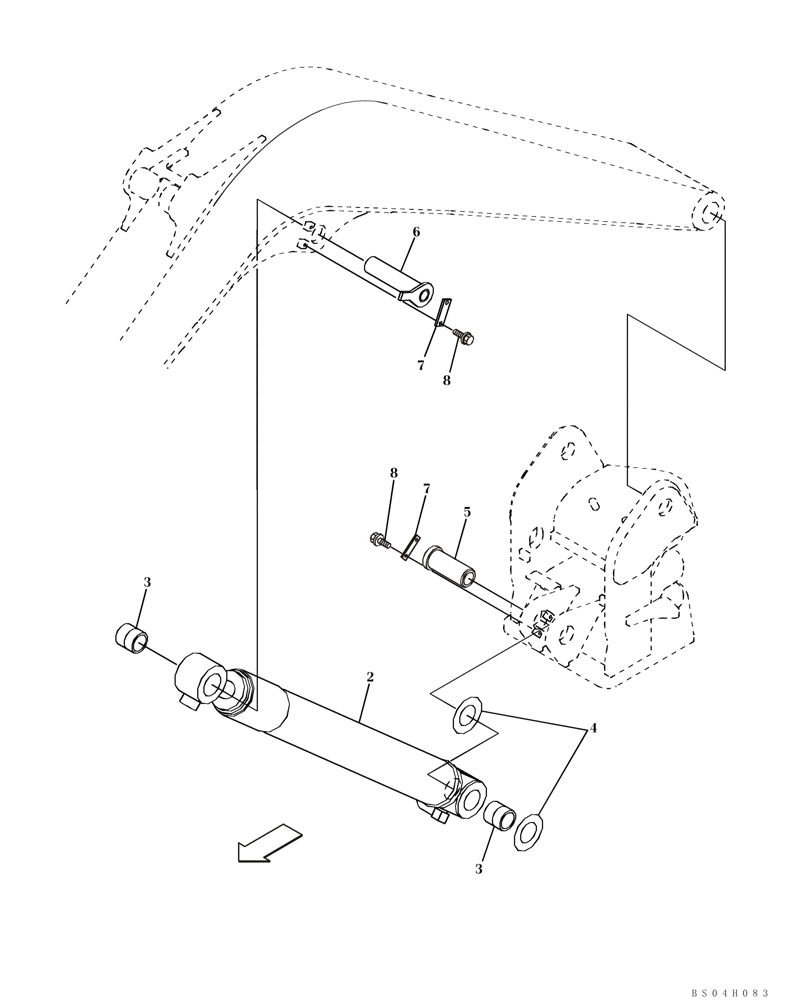

Запчасти Case CX80 (09-05) - BOOM CYLINDER, MOUNTING - MODELS WITHOUT LOAD HOLD (09) - CHASSIS

2

KAV2034

HYDRAULIC CYLINDER

Boom; See Figure 08-30

1шт.

3

169105A1

SELF LUB RING

2шт.

4

161643A1

SHIM,66mm ID x 130mm OD x 1.2mm Thk

1шт.

5

KAV2827

PIN

1шт.

6

KAV2071

PIN

1шт.

7

KHV0456

PLATE

2шт.

8

166351A1

BOLT,Sems, M10 x 20mm

4шт.
