(08-77) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT

Запчасти Case CX80 (08-77) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (08) - HYDRAULICS

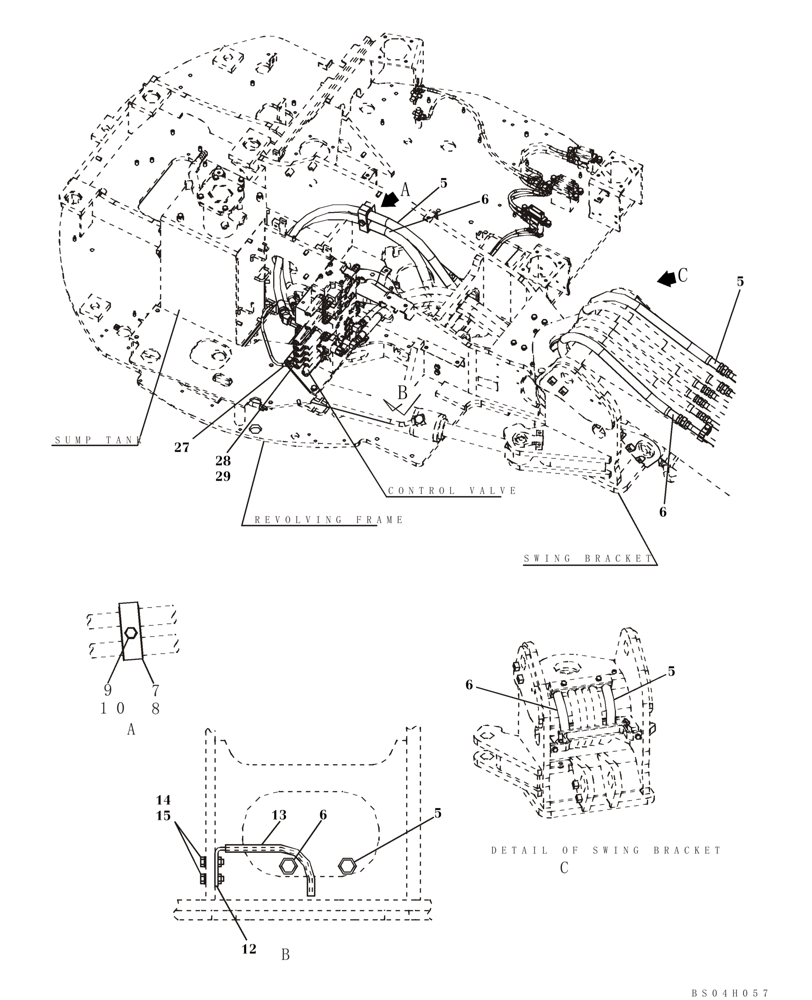

Схема запчастей Case CX80 - (08-77) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (08) - HYDRAULICS
29
6
detail of swing bracket
b
14
b
9
5
swing bracket
8
5
6
c
revolving frame
sump tank
28
6
7
a
27
5
15
5
c
13
12
a
6
bs04h057
control valve
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

5

KAJ5139

HYDRAULIC HOSE,15.9mm ID x 3400mm L

See Figure 08-78

1шт.

6

KAJ5166

HYDRAULIC HOSE,15.88 mm ID x 3500.00 mm

See Figure 08-78

1шт.

7

KAJ5183

HOSE CLAMP

2шт.

8

KAJ5156

PLATE

1шт.

9

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

10

150811A1

WASHER

1шт.

12

KAJ5199

HOLDER

1шт.

13

162189A1

GROMMET

1шт.

14

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

15

150409A1

WASHER

2шт.

27

KHJ2064

HOSE

See Figure 08-78

1шт.

28

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
