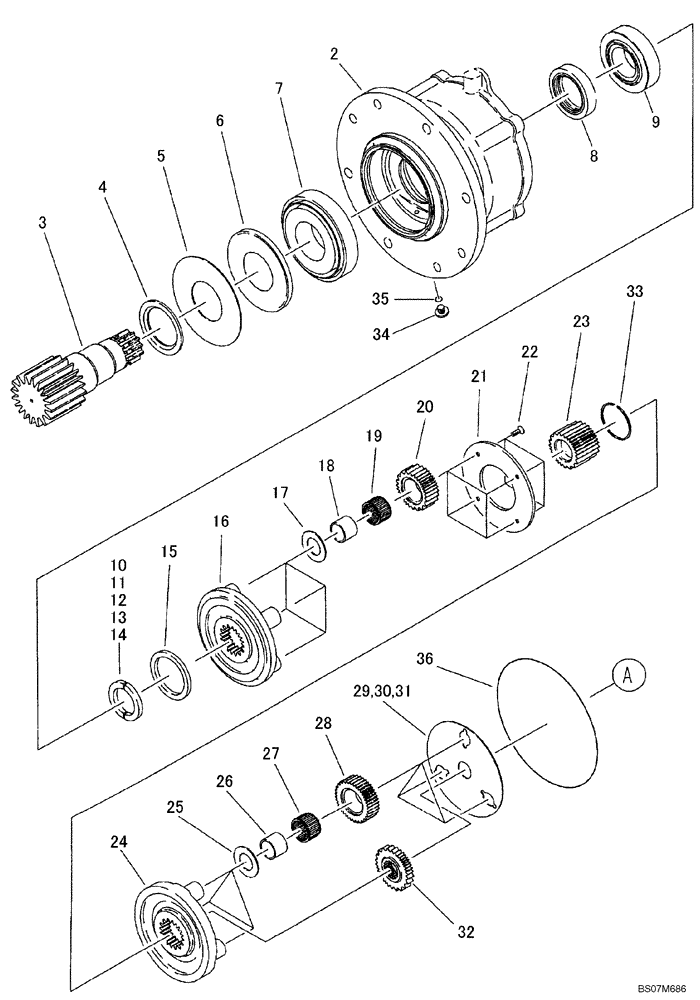

Запчасти Case CX80 (08-57) - GEAR ASSY, REDUCTION - MOTOR, SWING (08) - HYDRAULICS

KAC0177

MOTO-REDUCTION GEAR

Incl. 2 - 36; Also Includes Parts on Figure 08-58

1шт.

NSS

NOT SOLD SEPARAT

Gear Assy, Reduction; Incl. 2 - 36

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft

1шт.

4

NSS

NOT SOLD SEPARAT

Collar

1шт.

5

NSS

NOT SOLD SEPARAT

Plate

1шт.

6

NSS

NOT SOLD SEPARAT

Plate

1шт.

7

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

8

LE00983

OIL SEAL

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

10

NSS

NOT SOLD SEPARAT

Shim, Adjusting, 6,71mm (3/8 in)

1шт.

11

NSS

NOT SOLD SEPARAT

Shim, Adjusting, 6,78mm (3/8 in)

1шт.

12

NSS

NOT SOLD SEPARAT

Shim, Adjusting, 6,85mm (3/8 in)

1шт.

13

NSS

NOT SOLD SEPARAT

Shim, Adjusting, 6,92mm (3/8 in)

1шт.

14

NSS

NOT SOLD SEPARAT

Shim, Adjusting, 6,99mm (3/8 in)

1шт.

15

LH00315

COLLAR

1шт.

16

LS00191

HOLDER

1шт.

17

LA00814

THRUST WASHER

4шт.

18

LB00760

RING RACE

4шт.

19

LB00761

ROLLER BEARING

4шт.

20

LC00194

PLANETARY GEAR

4шт.

21

LR00831

THRUST PLATE

1шт.

22

LUM0174

SCREW

4шт.

23

LDM0175

SUN GEAR

1шт.

24

LS00192

HOLDER

1шт.

25

LA00815

THRUST WASHER

3шт.

26

LB00762

RING RACE

3шт.

27

LB00763

ROLLER BEARING

3шт.

28

LC00195

PLANETARY GEAR

3шт.

29

NSS

NOT SOLD SEPARAT

Plate, Thrust

1шт.

30

NSS

NOT SOLD SEPARAT

Plate, Thrust

1шт.

31

NSS

NOT SOLD SEPARAT

Plate, Thrust

1шт.

32

LC00196

PLANETARY GEAR

1шт.

33

LMM0536

RING

1шт.

34

164024A1

PLUG

1шт.

35

154455A1

O-RING

1шт.

36

155203A1

O-RING

1шт.

LZ00491

SEAL KIT

Hydraulic Motor; Incl. 35, 36; Also Includes Parts on Figure 08-58

1шт.

LZ00493

REPAIR KIT

Incl. 29 - 31

1шт.

LZ00494

REPAIR KIT

Incl. 2 - 15, 34 - 36

1шт.
