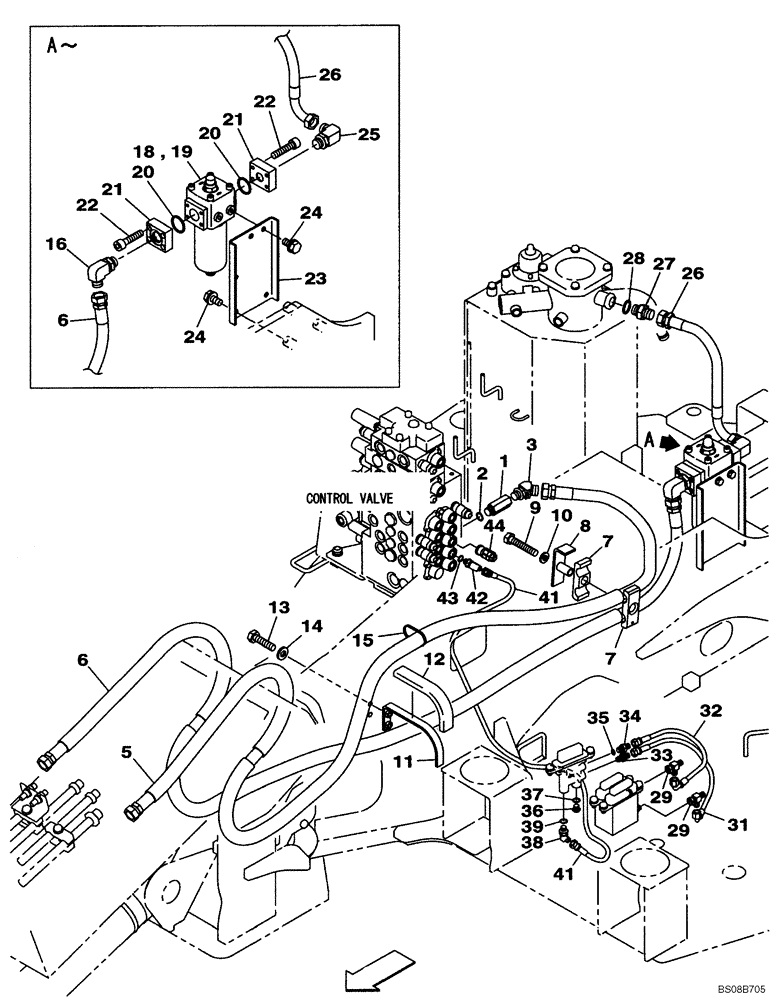

Запчасти Case CX80 (08-52) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

1

KHJ1070

STUD

Incl. Ref. 2

1шт.

2

154487A1

O-RING

1шт.

3

163005A1

ELBOW

1шт.

5

KAJ5139

HYDRAULIC HOSE,15.9mm ID x 3400mm L

1шт.

6

KAJ5147

HYDRAULIC HOSE,15.88 mm ID x 3100.00 mm

1шт.

7

KAJ5183

HOSE CLAMP

2шт.

8

KAJ5156

PLATE

1шт.

9

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

10

150811A1

WASHER

1шт.

11

KAJ5199

HOLDER

1шт.

12

162189A1

GROMMET

1шт.

13

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

14

150409A1

WASHER

2шт.

15

150498A1

MOUNTING CLIP

1шт.

16

UCJ0991

ELBOW

1шт.

18

163278A1

FILTER

See Figure 08-53

1шт.

19

159706A1

INDICATOR

Incl. Ref. 20

1шт.

20

154569A1

O-RING

2шт.

21

163275A1

FLANGE

2шт.

22

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

8шт.

23

KAJ5145

HOLDER

1шт.

24

166351A1

BOLT,Sems, M10 x 20mm

5шт.

25

UCJ0991

ELBOW

1шт.

26

KRJ5666

HYDRAULIC HOSE

19X55

1шт.

27

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. Ref. 28

1шт.

28

154503A1

O-RING

1шт.

29

KHJ2130

TEE

2шт.

31

KHJ2084

HOSE

6X350

1шт.

32

KHJ2238

HOSE

6X320

1шт.

33

161841A1

HYD CONNECTOR

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. Ref. 34

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

159002A1

PLUG

Incl. Ref. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

150933A1

ELBOW

Incl. Ref. 39

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

KHJ2058

HOSE

6X1550

1шт.

42

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. Ref. 43

1шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

KAJ4877

VALVE PRESSURE RELIE

1шт.
