(02-01) - ENGINE MOUNTING

Запчасти Case CX80 (02-01) - ENGINE MOUNTING (02) - ENGINE

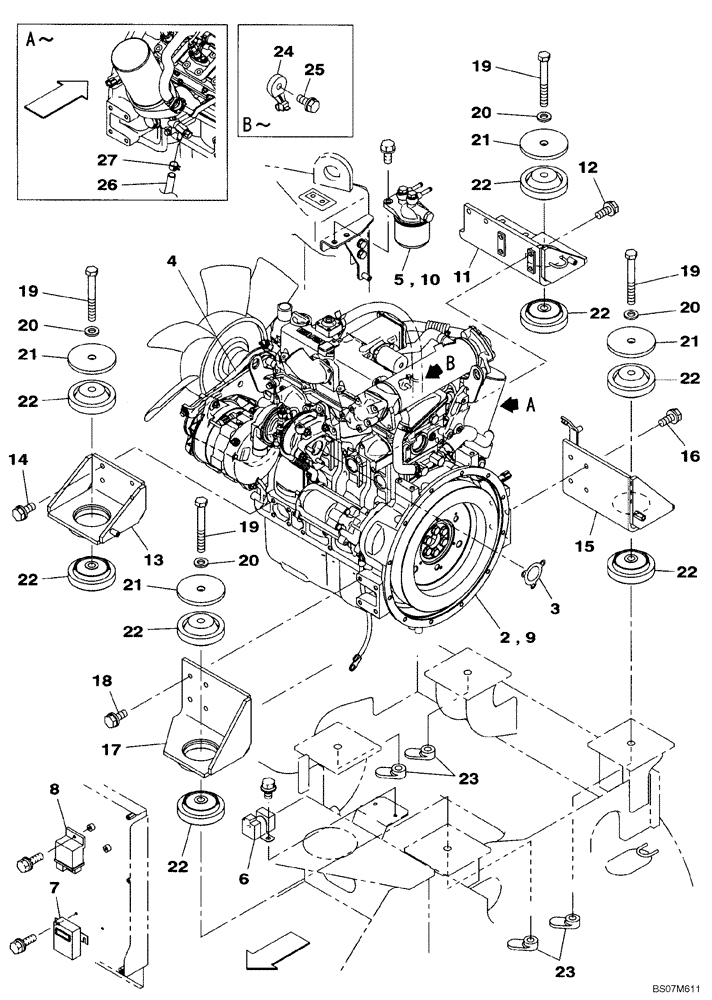

Схема запчастей Case CX80 - (02-01) - ENGINE MOUNTING (02) - ENGINE
15
22
21
4
23
22
14
25
22
19
26
20
9
7
22
21
11
18
19
20
21
17
3
19
16
22
20
10
8
19
23
2
20
22
12
21
6
5
24
22
13
27
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

KAH11610

ENGINE

Incl. 2-10

1шт.

2

KAH11610EC

CORE-ENGINE

Environmental Core, For N.A. Only

1шт.

3

NSS

NOT SOLD SEPARAT

GASKIT, EXHAUST

1шт.

4

KAH11100

SET OF 2 BELTS

2шт.

5

NSS

NOT SOLD SEPARAT

FILTER, FUEL

1шт.

6

150070A1

RELAY

1шт.

7

87714511

ECU

ELECTRONIC UNIT, CONTROL, SPL

1шт.

8

87714512

TIMER

GLOW PLUG

1шт.

9

KAH11150

ENGINE OIL FILTER

1шт.

10

87370735

FUEL FILTER

1шт.

11

KAH10630

ENGINE MOUNT

1шт.

12

166347A1

BOLT,Sems, M10 x 30mm

M10X30

4шт.

13

KAH10650

ENGINE MOUNT

1шт.

14

166347A1

BOLT,Sems, M10 x 30mm

M10X30

4шт.

15

KAH11520

ENGINE MOUNT

Before 075R3N8ELA7101, 075K3N8SLA7101, 080R3N8ELB7101, 080K3N8SLB7101

1шт.

16

166052A1

BOLT

M10X25

4шт.

15

KAH11770

ENGINE MOUNT

1шт.

17

KAH11470

ENGINE MOUNT

1шт.

18

166052A1

BOLT

M10X25

4шт.

19

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

4шт.

20

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

21

KRH10190

PLATE

4шт.

22

KNH10410

RUBBER MOUNTING

8шт.

23

KRH1251

SPECIAL NUT

4шт.

24

KHR2584

CLAMP

1шт.

25

KHJ1215

BOLT,Spcl

M8X25

1шт.

26

KHH10080

HOSE

1шт.

27

KHH0405

MOUNTING CLIP

1шт.
