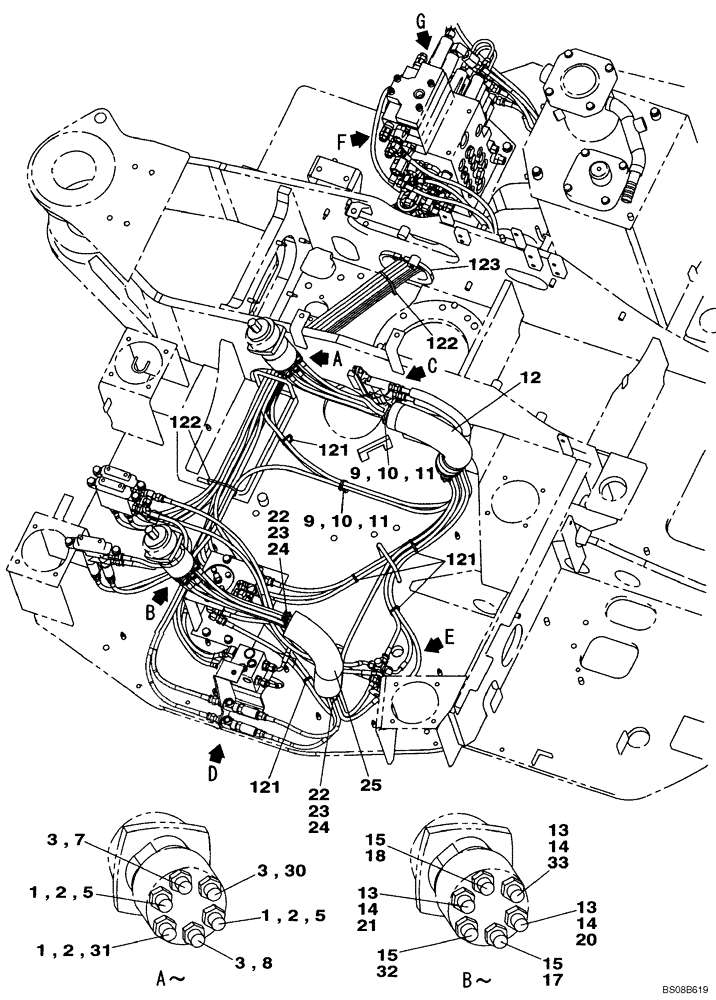

Запчасти Case CX80 (08-40) - PILOT CONTROL LINES - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 2

3шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

161841A1

HYD CONNECTOR

3шт.

5

KHJ2058

HOSE

6x1550

2шт.

7

KHJ2064

HOSE

6x1900

1шт.

8

KHJ2059

HOSE

6x1650

1шт.

9

150860A1

COLLAR

3шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

11

150496A1

MOUNTING CLIP

3шт.

12

KHJ2578

PROTECTOR

1шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 14

3шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

161841A1

HYD CONNECTOR

3шт.

17

KHJ2311

HOSE

6x1400

1шт.

18

KHJ2310

HOSE

6x1350

1шт.

20

KHJ2053

HOSE

6x1150

1шт.

21

KHJ2053

HOSE

6x1150

1шт.

22

150860A1

COLLAR

2шт.

23

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

24

150496A1

MOUNTING CLIP

2шт.

25

KHJ2578

PROTECTOR

1шт.

30

KHJ2057

HOSE

6X1450

1шт.

31

KHJ2059

HOSE

6x1650

1шт.

32

KHJ2051

HOSE

6x1050

1шт.

33

KHJ2090

HOSE

6x1000

1шт.

121

150496A1

MOUNTING CLIP

8шт.

122

150498A1

MOUNTING CLIP

6шт.

123

150876A1

RUBBER BLOCK

1шт.
