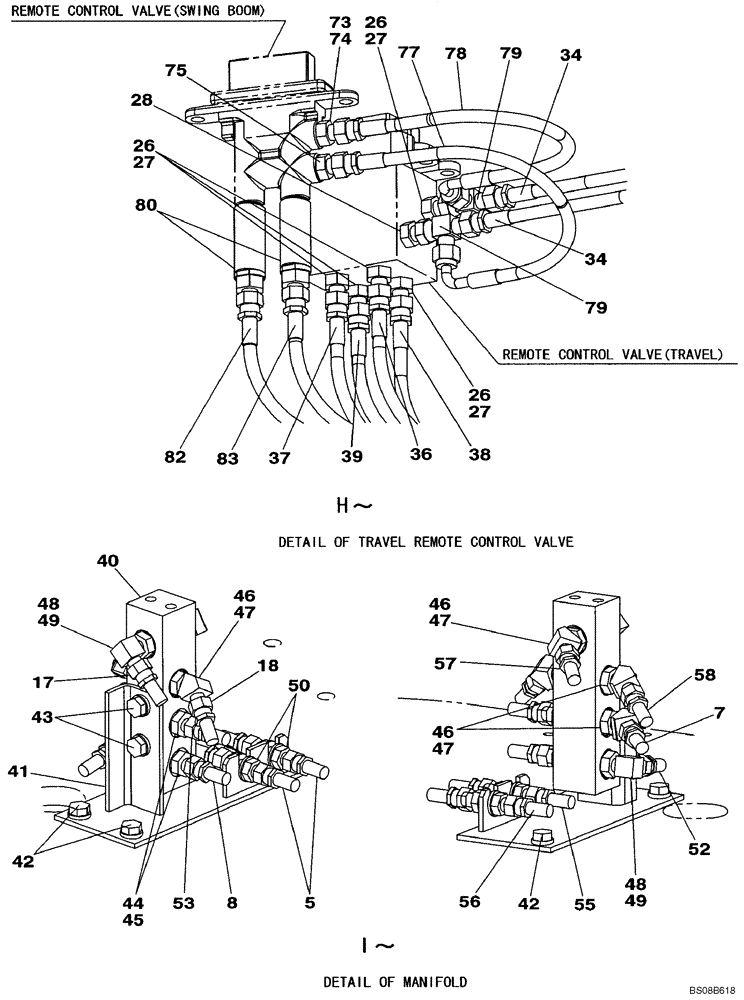

Запчасти Case CX80 (08-39) - PILOT CONTROL LINES - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

5

KHJ2058

HOSE

6X1550

2шт.

7

KHJ2064

HOSE

6X1900

1шт.

8

KHJ2059

HOSE

6X1650

1шт.

17

KHJ2311

HOSE

6X1400

1шт.

18

KHJ2310

HOSE

6X1350

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 27

5шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

28

161841A1

HYD CONNECTOR

1шт.

34

KHJ2088

HOSE

6X850

2шт.

36

KHJ2255

HOSE

6X2100

1шт.

37

KHJ2057

HOSE

6X1450

1шт.

38

KHJ2067

HOSE

6X2200

1шт.

39

KHJ2057

HOSE

6X1450

1шт.

40

KHJ2437

MANIFOLD

1шт.

41

KAJ5013

BRACKET

1шт.

42

166052A1

BOLT

M10X25

3шт.

43

166351A1

BOLT,Sems, M10 x 20mm

M10X20

2шт.

44

153378A1

ADAPTER

Incl. 45

2шт.

45

154475A1

O-RING

1шт.

46

KHJ1445

ELBOW

Incl. 47

4шт.

47

154475A1

O-RING

4шт.

48

156554A1

ELBOW

Incl. 49

2шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

50

159481A1

ADAPTER

2шт.

52

KHJ2239

HOSE,520.00 mm

6X520

1шт.

53

KHJ2238

HOSE

6X320

1шт.

55

KHJ2057

HOSE

6X1450

1шт.

56

KHJ2066

HOSE

6X2150

1шт.

57

KHJ2066

HOSE

6X2150

1шт.

58

KHJ2064

HOSE

6X1900

1шт.

73

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 74

1шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

75

161841A1

HYD CONNECTOR

1шт.

77

KHJ2035

HOSE

6X400

1шт.

78

KHJ2035

HOSE

6X400

1шт.

79

KHJ2130

TEE

2шт.

80

KHJ2925

CONTROL VALVE

2шт.

82

KHJ2071

HOSE

6X2450

1шт.

83

KHJ2255

HOSE

6X2100

1шт.
