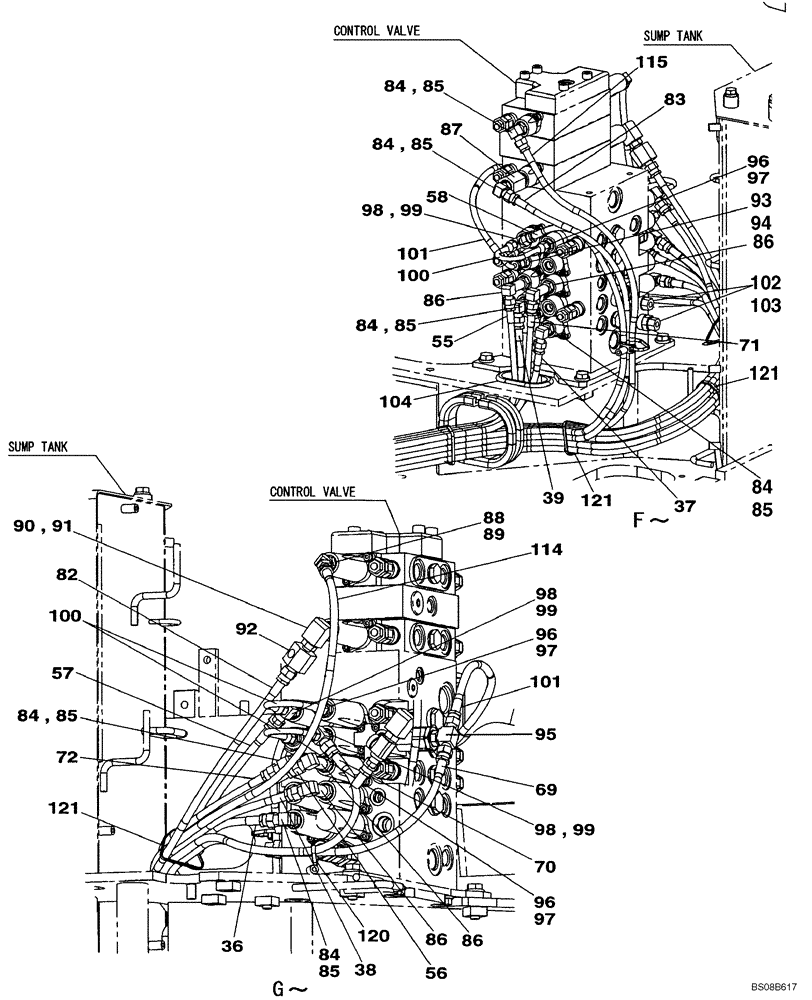

Запчасти Case CX80 (08-38) - PILOT CONTROL LINES - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

36

KHJ2255

HOSE

6X2100

1шт.

37

KHJ2057

HOSE

6X1450

1шт.

38

KHJ2067

HOSE

6X2200

1шт.

39

KHJ2057

HOSE

6X1450

1шт.

55

KHJ2057

HOSE

6X1450

1шт.

56

KHJ2066

HOSE

6X2150

1шт.

57

KHJ2066

HOSE

6X2150

1шт.

58

KHJ2064

HOSE

6X1900

1шт.

69

KHJ2077

HOSE

6X2800

1шт.

70

KHJ2162

HOSE

6X2700

1шт.

71

KHJ2064

HOSE

6X1900

1шт.

72

KHJ2074

HOSE

6X2600

1шт.

82

KHJ2071

HOSE

6X2450

1шт.

83

KHJ2255

HOSE

6X2100

1шт.

84

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 85

1шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

KHJ1178

ELBOW

4шт.

87

KHJ12530

TEE

1шт.

88

150933A1

ELBOW

Incl. 89

1шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

KHJ0719

ELBOW

Incl. 91

1шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

92

167666A1

FITTING

Incls. O-ring

1шт.

93

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 94

1шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

167321A1

TEE

1шт.

96

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 97

3шт.

97

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

98

KHJ2131

TEE

Incl. 99

3шт.

99

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

100

KAJ4701

HYD TUBE,6 mm ID x 8 mm OD

3шт.

101

KHJ2179

HOSE

6X450

1шт.

104

KRH1268

GROMMET

1шт.

114

KHJ2082

HOSE

6X3400

1шт.

115

KHJ2076

HOSE,6mm ID x 2750mm L

6X2750

1шт.

120

150496A1

MOUNTING CLIP

8шт.

121

150498A1

MOUNTING CLIP

6шт.
