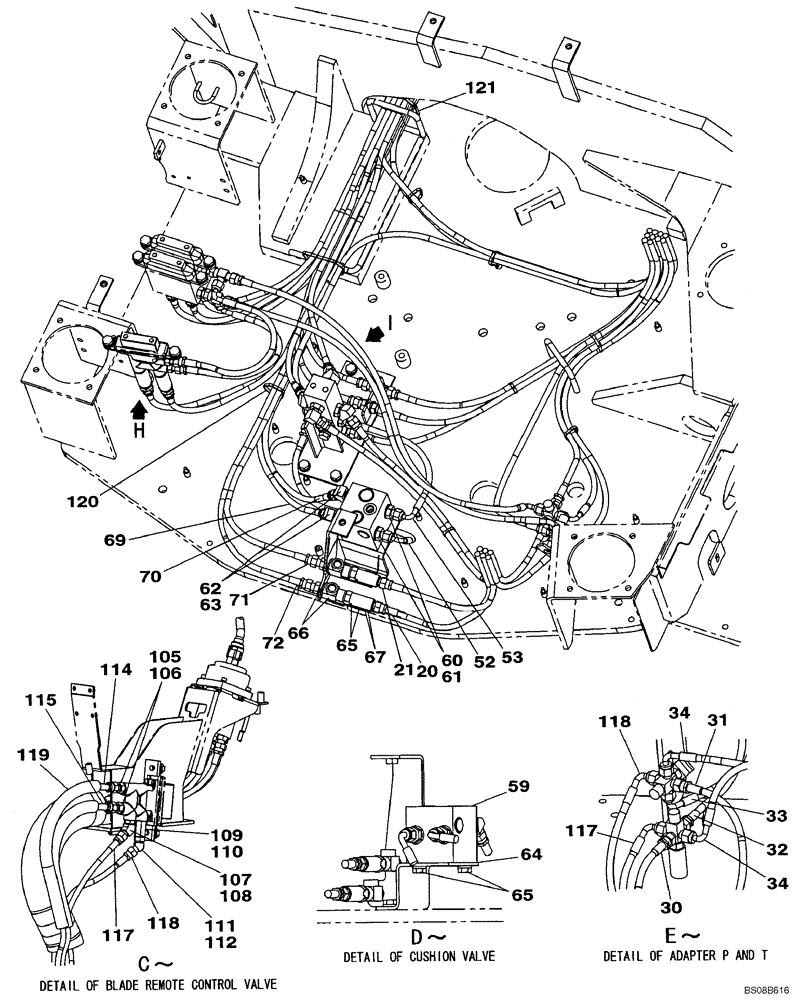

Запчасти Case CX80 (08-37) - PILOT CONTROL LINES - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

20

KHJ2053

HOSE

6X1150

1шт.

21

KHJ2053

HOSE

6X1150

1шт.

22

150860A1

COLLAR

2шт.

30

KHJ2057

HOSE

6X1400

1шт.

31

KHJ2059

HOSE

6X1650

1шт.

32

KHJ2051

HOSE

6X1050

1шт.

33

KHJ2090

HOSE

6X1000

1шт.

34

KHJ2088

HOSE

6X850

2шт.

52

KHJ2239

HOSE,520.00 mm

6X520

1шт.

53

KHJ2238

HOSE

6X320

1шт.

59

KHJ2317

VALVE, CUSHION

See Figure 08 - 44

1шт.

60

153378A1

ADAPTER

Incl. 61

2шт.

61

154475A1

O-RING

1шт.

62

KHJ1445

ELBOW

Incl. 63

2шт.

63

154475A1

O-RING

1шт.

65

166052A1

BOLT

M10x25

4шт.

66

KHJ12520

TEE

2шт.

67

KHJ2314

VALVE, CUSHION

See Figure 08 - 45

2шт.

69

KHJ2077

HOSE

6x2800

1шт.

70

KHJ2162

HOSE

6x2700

1шт.

71

KHJ2064

HOSE

6X1900

1шт.

72

KHJ2074

HOSE

6x2600

1шт.

105

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 106

2шт.

106

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

107

KHJ0994

ADAPTER

1шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

162525A1

STUD

Incl. 110

1шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

111

150933A1

ELBOW

Incl. 112

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

114

KHJ2082

HOSE

6x3400

1шт.

115

KHJ2076

HOSE,6mm ID x 2750mm L

6x2750

1шт.

117

KHJ2090

HOSE

6x1000

1шт.

118

KHJ2146

HOSE

6x1200

1шт.

119

KHR4065

PLASTIC-RUBBER TUBE

2шт.

108

KAJ4091

RUBBER SEAL

2шт.

120

150496A1

MOUNTING CLIP

8шт.

121

150496A1

MOUNTING CLIP

6шт.
