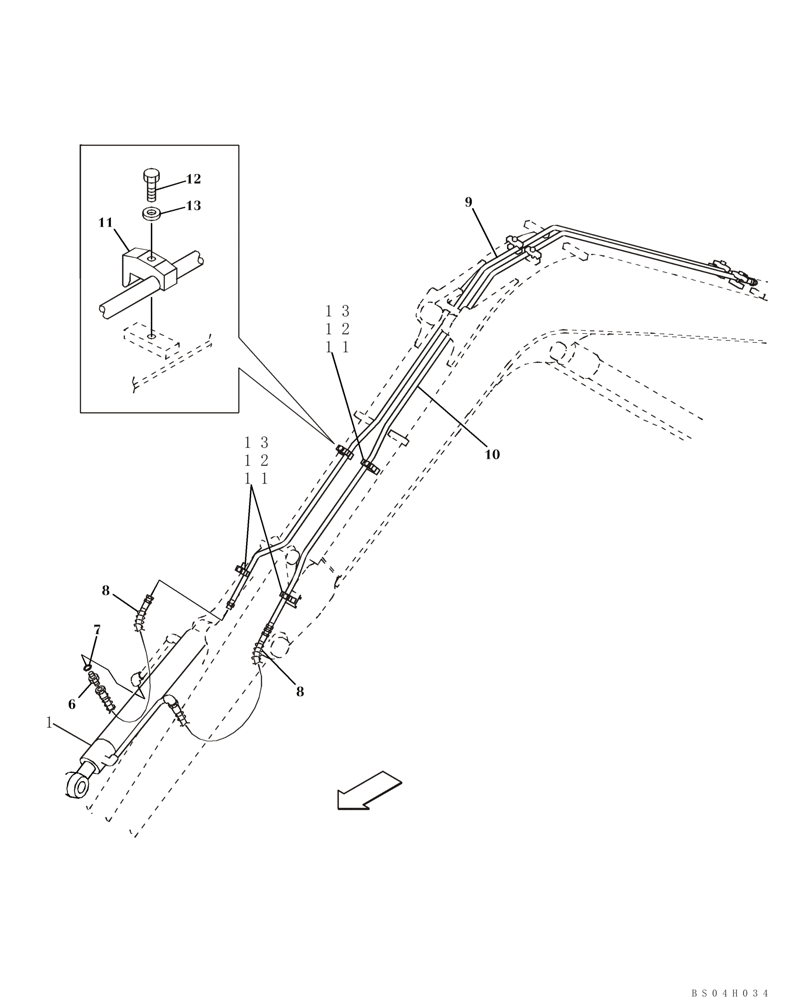

Запчасти Case CX80 (08-29) - HYDRAULICS - BUCKET, 2,1 METER (6 FT 11 IN) LONG ARM (08) - HYDRAULICS

1

KAV2440

BUCKET CYLINDER

Bucket; See Figure 08-94

1шт.

6

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 7

2шт.

7

154487A1

O-RING

1шт.

8

KNV1442

HYDRAULIC HOSE,12.70 mm ID x 1320.00 mm

2шт.

9

KAV2772

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

10

KAV2773

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

11

166401A1

HALF-FLANGE

4шт.

12

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

4шт.

13

150811A1

WASHER

4шт.
