Запчасти Case CX80 (08-27) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD, MODELS WITH STANDARD BOOM (08) - HYDRAULICS

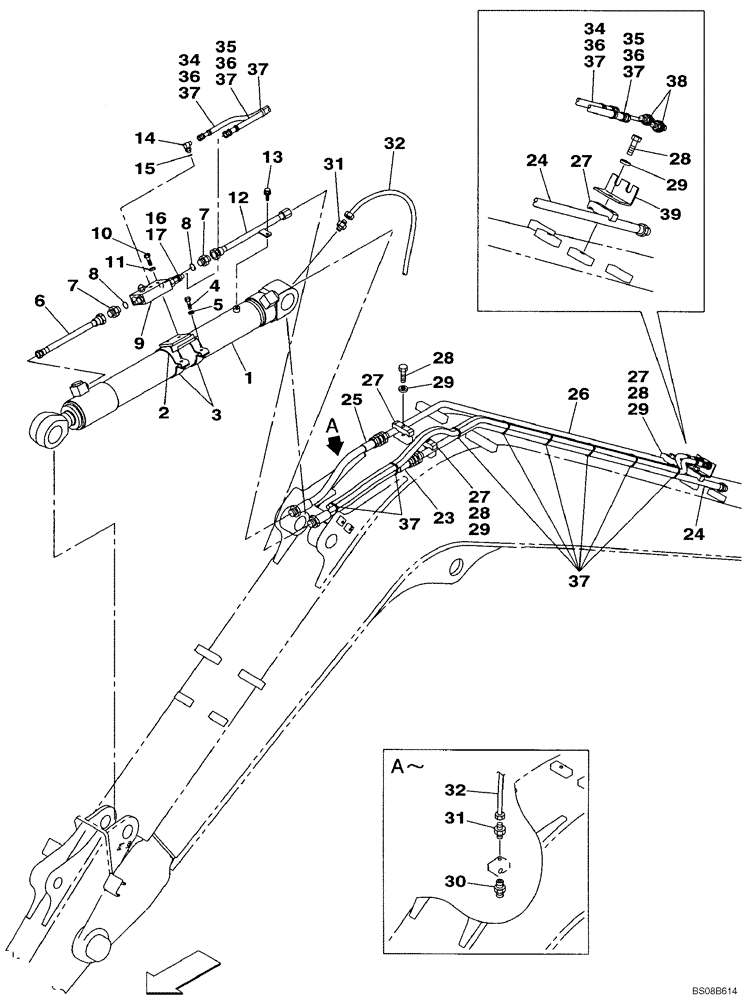

Схема запчастей Case CX80 - (08-27) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD, MODELS WITH STANDARD BOOM (08) - HYDRAULICS
37
26
7
36
1
32
8
37
29
28
5
16
27
28
37
24
11
2
27
37
29
36
35
34
24
7
8
31
17
37
10
36
3
4
12
15
27
28
32
6
14
38
34
13
30
37
39
37
29
25
28
31
23
29
9
35
27
36

Артикул

Название

Примечание

Количество

1

KAV2437

HYDRAULIC CYLINDER

Arm; See Figure 08-93

1шт.

2

KAV2255

CLAMP

1шт.

3

168557A1

COLLAR

2шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

5

150409A1

WASHER

4шт.

6

KAV2242

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

7

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 8

2шт.

8

154503A1

O-RING

1шт.

9

KAJ4596

SAFETY VALVE

Incl. 08-17

1шт.

10

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

12

KAV2243

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

13

166350A1

BOLT

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

166444A1

HYDRAULIC HOSE,15.90 mm ID x 600.00 mm

1шт.

24

KAV2770

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

25

166418A1

HYDRAULIC HOSE,12.70 mm ID x 600.00 mm

1шт.

26

KAV2771

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

27

166400A1

COLLAR

4шт.

28

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

4шт.

29

150811A1

WASHER

4шт.

30

153630A1

LUBE NIPPLE

Grease

1шт.

31

150190A1

FITTING

2шт.

32

152549A1

TUBE,4.32 mm ID, 6.35 mm OD

1шт.

34

KHJ2484

HYDRAULIC HOSE,6.30 mm ID x 2850.00 mm

1шт.

35

168610A1

HYDRAULIC HOSE,6.30 mm ID x 2750.00 mm

1шт.

36

150417A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 2500 mm Length

2шт.

37

150071A1

MOUNTING CLIP

13шт.

38

159481A1

ADAPTER

2шт.

39

KAV2565

BRACKET

1шт.

Выбрано товаров: 33
