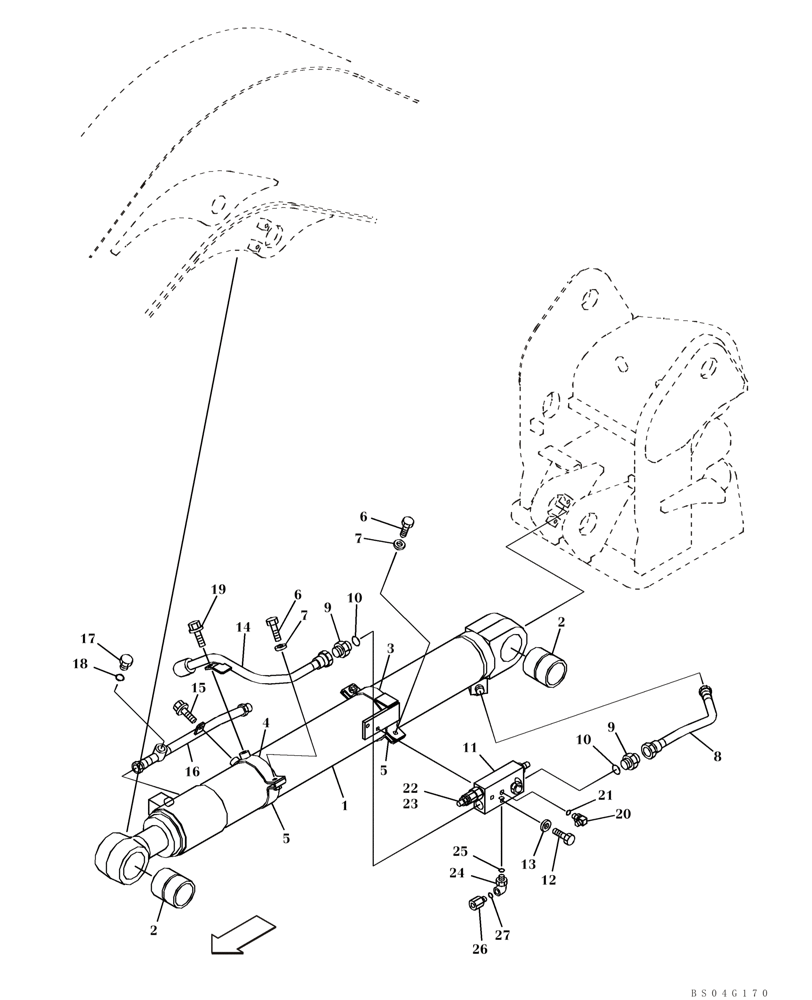

Запчасти Case CX80 (08-23) - HYDRAULICS - BOOM CYLINDER LINE, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

KAV2039

HYDRAULIC CYLINDER

Boom; Incl. 2; No Other Component Parts Available At Time Of Printing

1шт.

2

169105A1

SELF LUB RING

2шт.

3

KAV2387

CLAMP BRACKET

1шт.

4

KAV2382

CLAMP BRACKET

1шт.

5

KAV1682

CLAMP BRACKET

2шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

7

150409A1

WASHER

4шт.

8

KAV2240

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

9

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 10

2шт.

10

154503A1

O-RING

1шт.

11

KAJ4596

SAFETY VALVE

See Figure 08-97

1шт.

12

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

14

KAV2381

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

15

166351A1

BOLT,Sems, M10 x 20mm

1шт.

16

KAV2386

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

17

162557A1

PLUG

Incl. 18

1шт.

18

154475A1

O-RING

1шт.

19

166351A1

BOLT,Sems, M10 x 20mm

1шт.

20

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

22

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 23

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

24

166573A1

ELBOW

Incl. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

KHJ1584

UNION

Incl. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
