(08-16) - HYDRAULICS - DRAIN LINE, STANDARD AND DOUBLE ACTING CIRCUIT

Запчасти Case CX80 (08-16) - HYDRAULICS - DRAIN LINE, STANDARD AND DOUBLE ACTING CIRCUIT (08) - HYDRAULICS

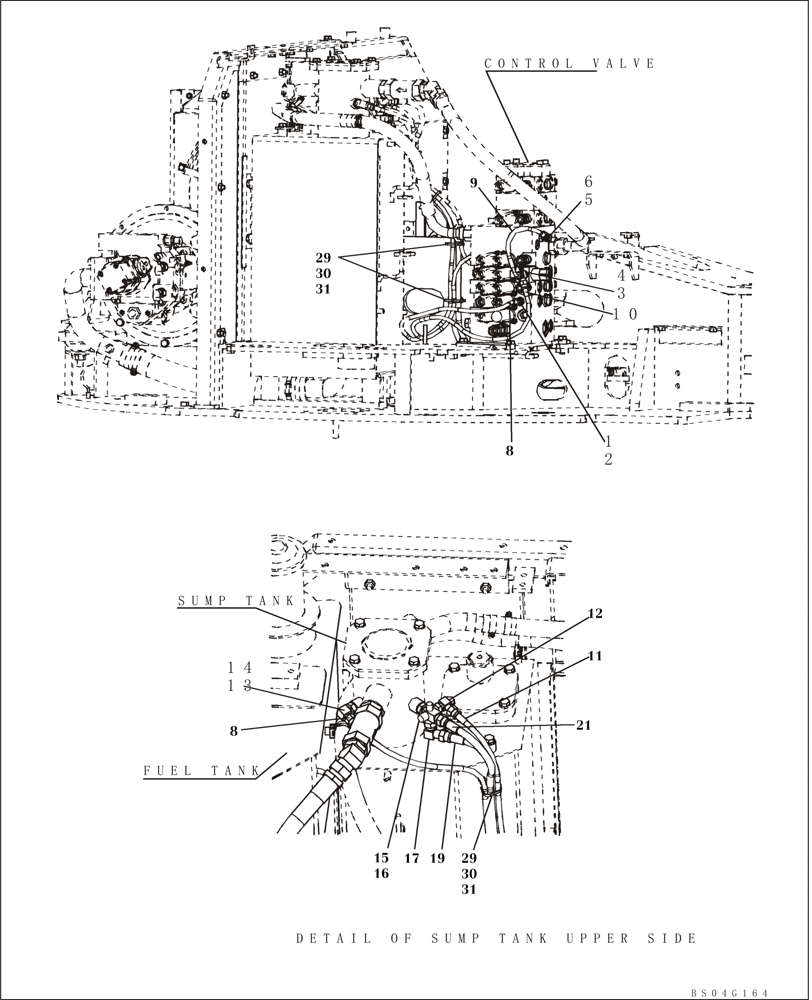

Схема запчастей Case CX80 - (08-16) - HYDRAULICS - DRAIN LINE, STANDARD AND DOUBLE ACTING CIRCUIT (08) - HYDRAULICS
detail of sump tank upper side
bs04g164
11
29
12
16
5
13
30
fuel tank
21
4
14
31
10
19
2
sump tank
15
30
29
6
1
control valve
17
8
3
9
31
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

159497A1

TEE

Incl. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

KHJ2061

HOSE

1шт.

9

KHJ2292

HOSE

1шт.

10

KHJ2054

HOSE

1шт.

11

KHJ2036

HOSE

1шт.

12

163814A1

ELBOW

1шт.

13

156554A1

ELBOW

Incl. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

KHJ1964

ADAPTER

Incl. 16

1шт.

16

154475A1

O-RING

1шт.

17

153526A1

ELBOW

1шт.

19

KHJ2207

HOSE

1шт.

21

KHJ2318

HOSE

1шт.

29

150860A1

COLLAR

3шт.

30

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

31

150496A1

MOUNTING CLIP

3шт.
