(08-15) - HYDRAULICS - DRAIN LINE, STANDARD AND DOUBLE ACTING CIRCUIT

Запчасти Case CX80 (08-15) - HYDRAULICS - DRAIN LINE, STANDARD AND DOUBLE ACTING CIRCUIT (08) - HYDRAULICS

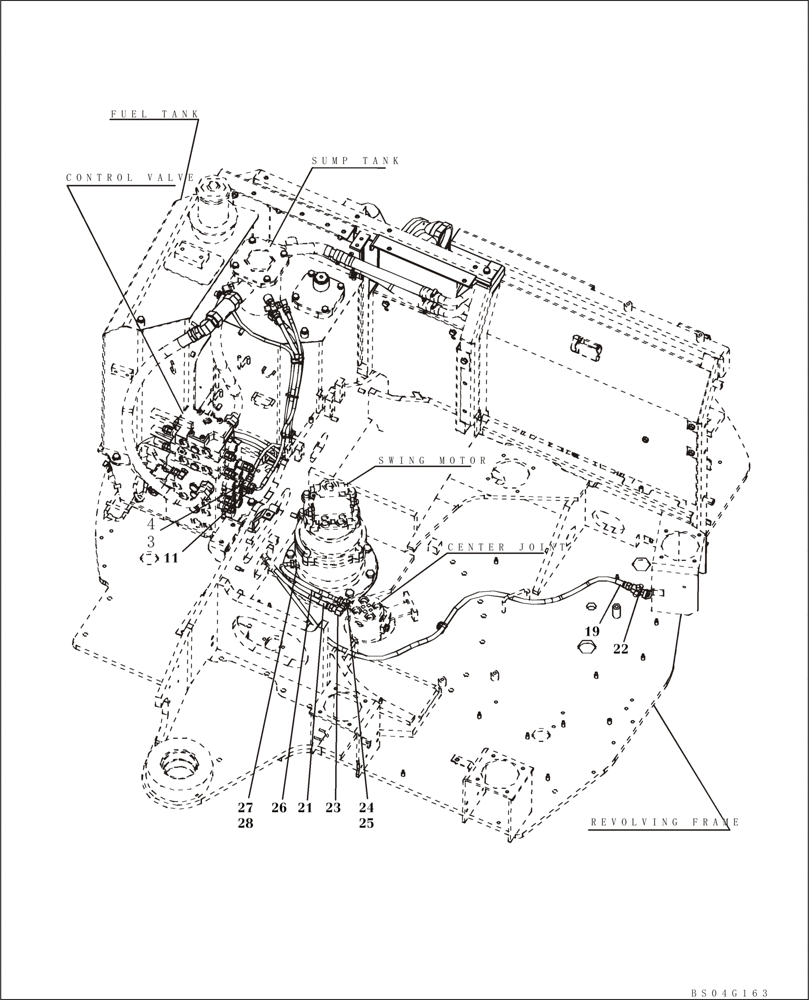

Схема запчастей Case CX80 - (08-15) - HYDRAULICS - DRAIN LINE, STANDARD AND DOUBLE ACTING CIRCUIT (08) - HYDRAULICS
fuel tank
23
24
center joint
revolving frame
19
25
swing motor
26
4
3
21
27
22
control valve
bs04g163
sump tank
11
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3

159497A1

TEE

Incl. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KHJ2036

HOSE

1шт.

19

KHJ2207

HOSE

1шт.

21

KHJ2318

HOSE

1шт.

22

KHJ1966

ADAPTER

1шт.

23

153526A1

ELBOW

1шт.

24

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 25

1шт.

25

154475A1

O-RING

1шт.

26

KHJ2294

HYDRAULIC HOSE,9.50 mm ID x 320.00 mm

1шт.

27

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 28

1шт.

28

154475A1

O-RING

1шт.
