(08-13) - HYDRAULICS - DRAIN LINE, MULTI-PURPOSE + 3 WAY VALVE

Запчасти Case CX80 (08-13) - HYDRAULICS - DRAIN LINE, MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

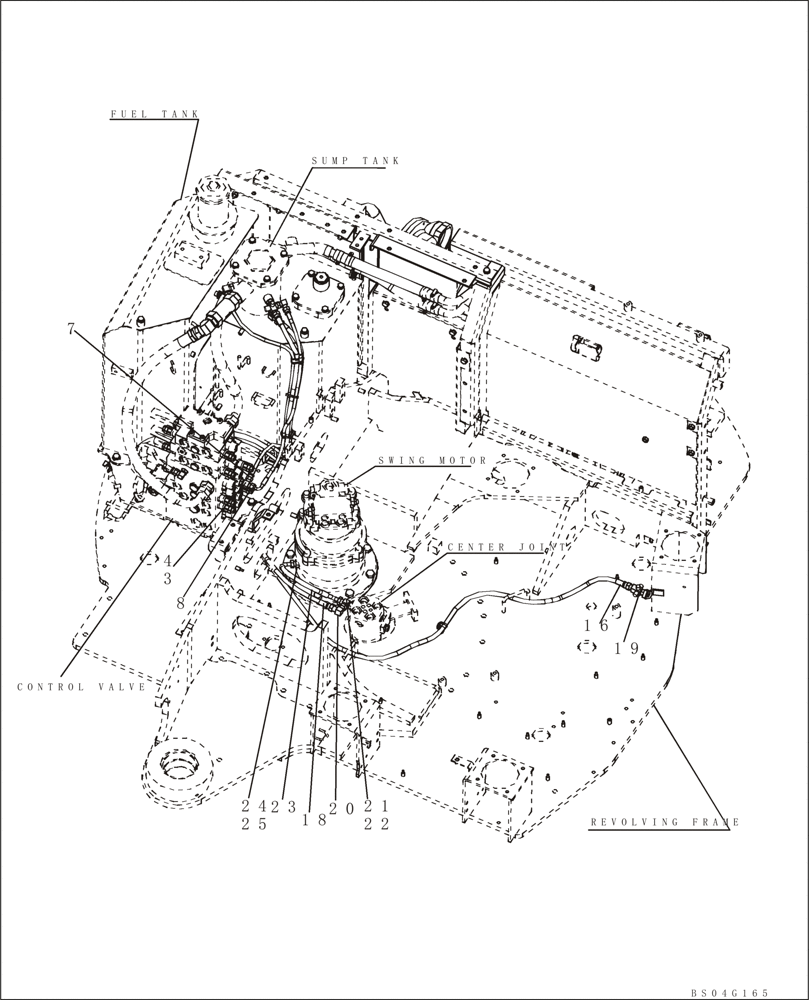

Схема запчастей Case CX80 - (08-13) - HYDRAULICS - DRAIN LINE, MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS
bs04g165
23
8
21
16
4
7
20
center joint
revolving frame
fuel tank
control valve
19
sump tank
18
24
swing motor
22
25
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3

159497A1

TEE

Incl. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KHJ2054

HOSE

1шт.

8

KHJ2036

HOSE

1шт.

16

KHJ2207

HOSE

1шт.

18

KHJ2318

HOSE

1шт.

19

KHJ1966

ADAPTER

1шт.

20

153526A1

ELBOW

1шт.

21

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 22

1шт.

22

154475A1

O-RING

1шт.

23

KHJ2294

HYDRAULIC HOSE,9.50 mm ID x 320.00 mm

1шт.

24

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 25

1шт.

25

154475A1

O-RING

1шт.
