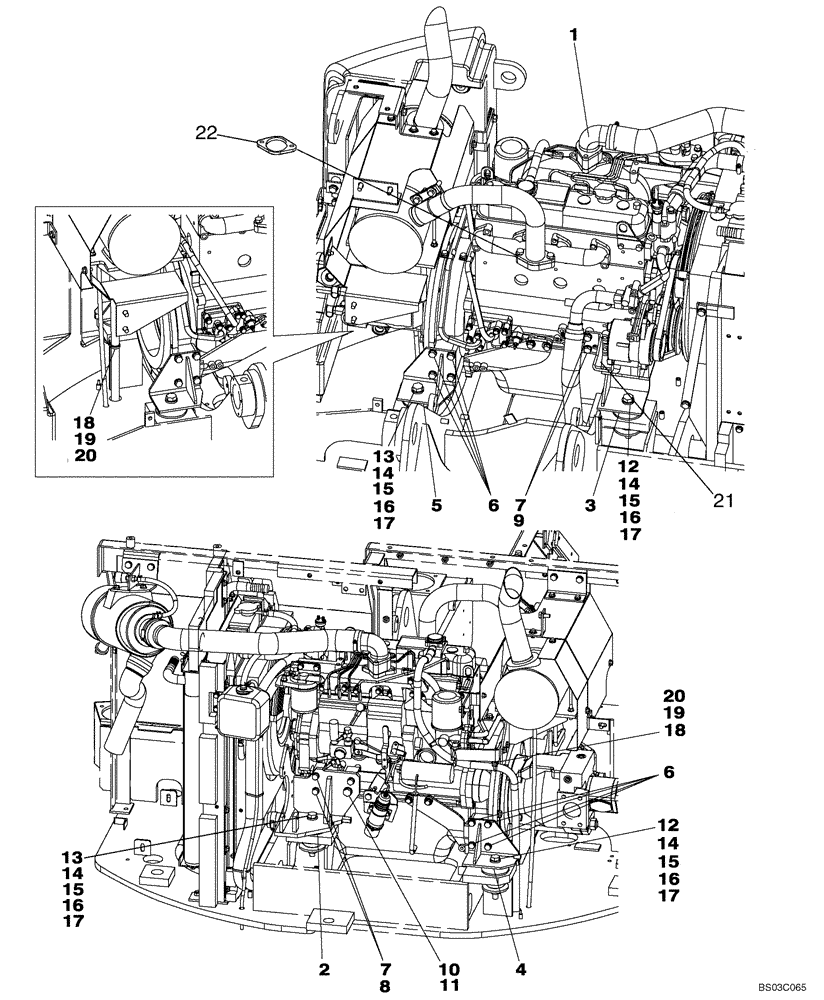

Запчасти Case CX80 (02-01) - ENGINE MOUNTING (02) - ENGINE

1

KAH10370

ENGINE ASSEMBLY

ENGINE ASSY Replaces KAH1395, See Figure(s) 02-07 - 02-23, 03-06 - 03-12

1шт.

1

KAH10370EC

CORE-ENGINE

Environmental Core, For N.A. Only

1шт.

2

KAH1402

ENGINE MOUNT

1шт.

3

KAH1376

ENGINE MOUNT

1шт.

4

KAH1377

ENGINE MOUNT

1шт.

5

KAH1378

ENGINE MOUNT

1шт.

6

166347A1

BOLT,Sems, M10 x 30mm

8шт.

7

150409A1

WASHER

10,5 x 21 x 3,2 mm

7шт.

8

167468A1

BOLT

3шт.

9

167189A1

BOLT,Spcl, M10 x 1.25 x 20mm

4шт.

10

132R014Y090R

BOLT

Replaces KBH0318

1шт.

11

167193A1

WASHER

1шт.

12

KAH1343

RUBBER SEAL

4шт.

13

KAH1344

RUBBER SEAL

4шт.

14

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

4шт.

15

829-1416

NUT,M16, Cl 10

4шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

17 x 32 x 4,5 mm

8шт.

17

167591A1

PLATE

4шт.

18

150860A1

COLLAR

2шт.

19

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

20

150067A1

MOUNTING CLIP

2шт.

21

167592A1

BRACKET

1шт.

22

KAH1379

GASKET

Exhaust

1шт.
