(08-11) - HYDRAULICS - DRAIN LINE, SINGLE ACTING CIRCUIT

Запчасти Case CX80 (08-11) - HYDRAULICS - DRAIN LINE, SINGLE ACTING CIRCUIT (08) - HYDRAULICS

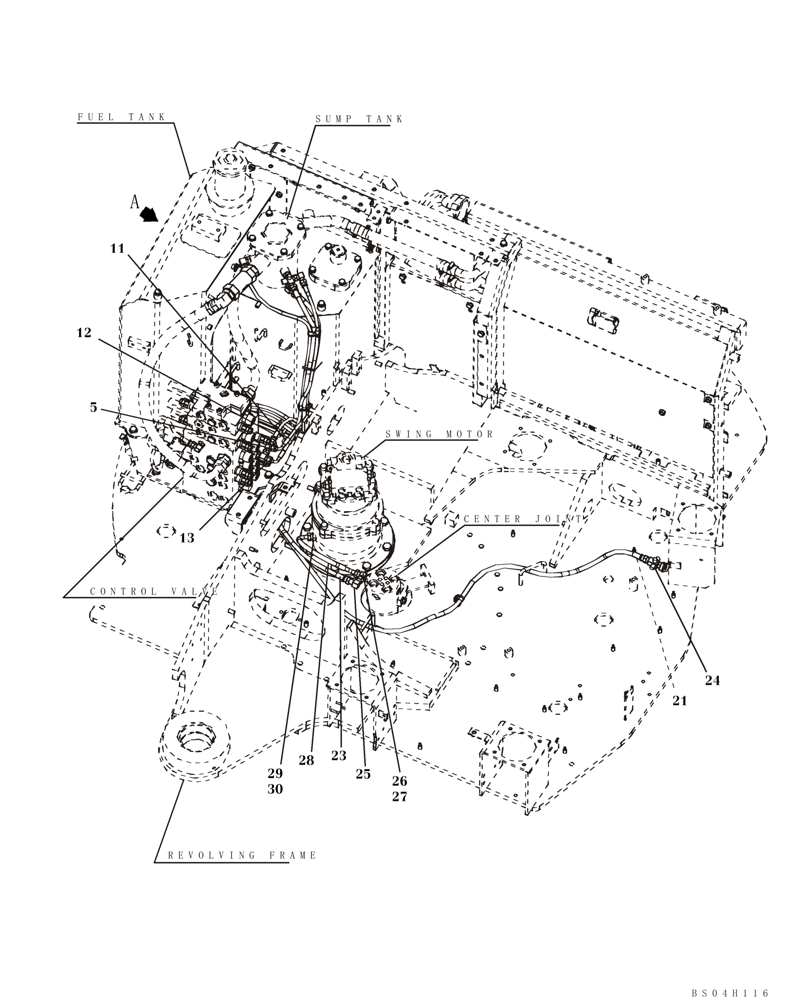

Схема запчастей Case CX80 - (08-11) - HYDRAULICS - DRAIN LINE, SINGLE ACTING CIRCUIT (08) - HYDRAULICS
swing motor
center joint
revolving frame
26
28
13
24
11
21
30
27
bs04h116
fuel tank
23
control valve
29
5
25
a
sump tank
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

5

KHJ2130

TEE

1шт.

11

KHJ2249

HOSE

1шт.

12

KHJ2054

HOSE

1шт.

13

KHJ2036

HOSE

1шт.

21

KHJ2207

HOSE

1шт.

23

KHJ2318

HOSE

1шт.

24

KHJ1966

ADAPTER

1шт.

25

153526A1

ELBOW

1шт.

26

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 27

1шт.

27

154475A1

O-RING

1шт.

28

KHJ2294

HYDRAULIC HOSE,9.50 mm ID x 320.00 mm

1шт.

29

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 30

1шт.

30

154475A1

O-RING

1шт.
