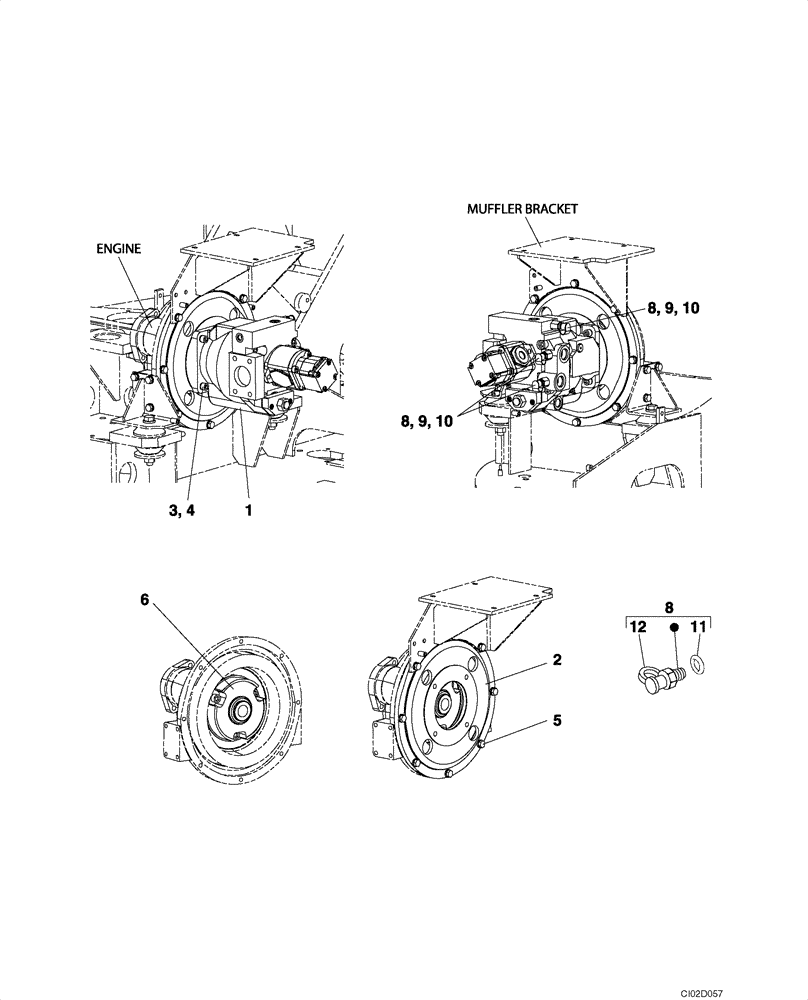

Запчасти Case CX80 (08-02) - PUMP ASSY, HYDRAULIC - COUPLING (08) - HYDRAULICS

1

KAJ4955

HYDRAULIC PUMP

See Figure 08-58 - 08-62

1шт.

87341992

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341994

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

2

167688A1

FLANGE

1шт.

3

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

4

892-11012

LOCK WASHER,M12

4шт.

5

166347A1

BOLT,Sems, M10 x 30mm

5шт.

6

KAJ5015

KIT

1шт.

8

1541849C1

COUPLING

Diagnostic Coupling; Incl. 11, 12

3шт.

9

KHJ2620

BUSHING

Replaces 151136A1, Incl. 10

3шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

H434163

DUST CAP

1шт.
