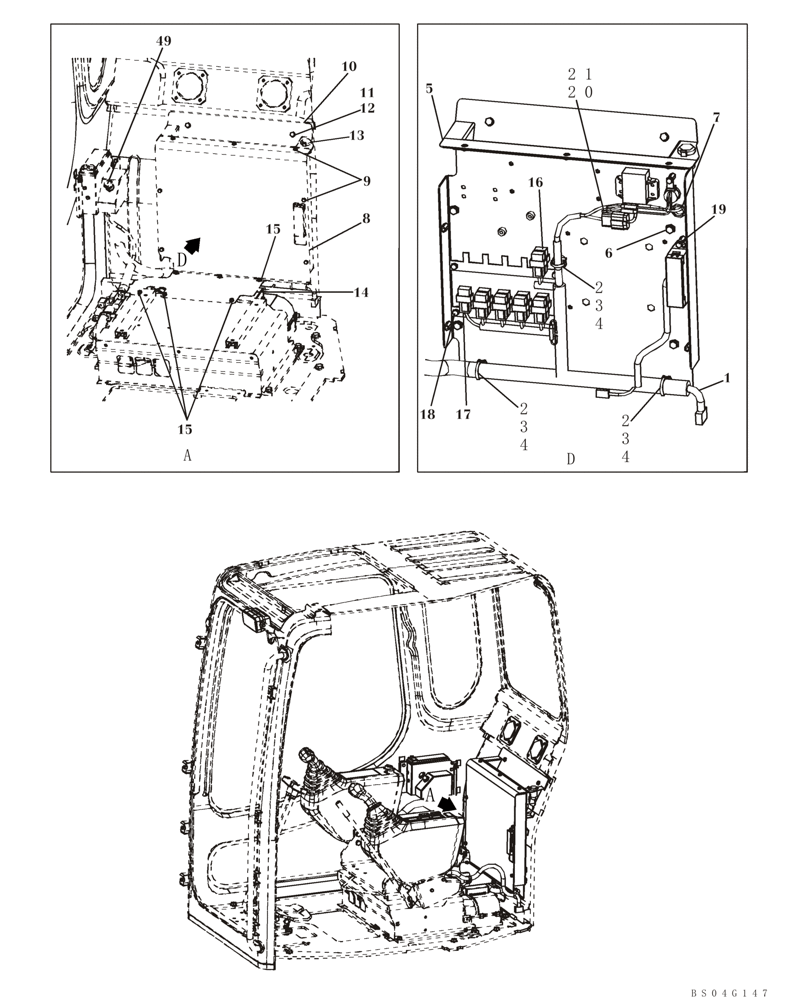

Запчасти Case CX80 (04-04) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS

1

KAR1518

WIRE HARNESS

Incl. 2

1шт.

2

150496A1

MOUNTING CLIP

1шт.

3

150860A1

COLLAR

3шт.

4

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

5

KHR4015

BRACKET

1шт.

6

166345A1

BOLT

4шт.

7

KMR0897

GROMMET

1шт.

8

KHR3903

COVER

1шт.

9

KHN2132

BOLT,Hex Flg Hd, M6 x 16

7шт.

10

KHR4043

COVER

Replaces KHR3904

1шт.

11

162571A1

BOLT,High Strength, M8 x 16mm

2шт.

12

159500A1

WASHER

2шт.

13

KHR2501

SOCKET

1шт.

14

KHR4166

COVER

1шт.

15

KHN2132

BOLT,Hex Flg Hd, M6 x 16

6шт.

16

KHR3803

RELAY

7шт.

17

KHR3807

BRACKET

2шт.

18

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

4шт.

19

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

20

165405A1

CLIP

1шт.

21

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

49

KHR4045

CIGAR LIGHTER

1шт.
