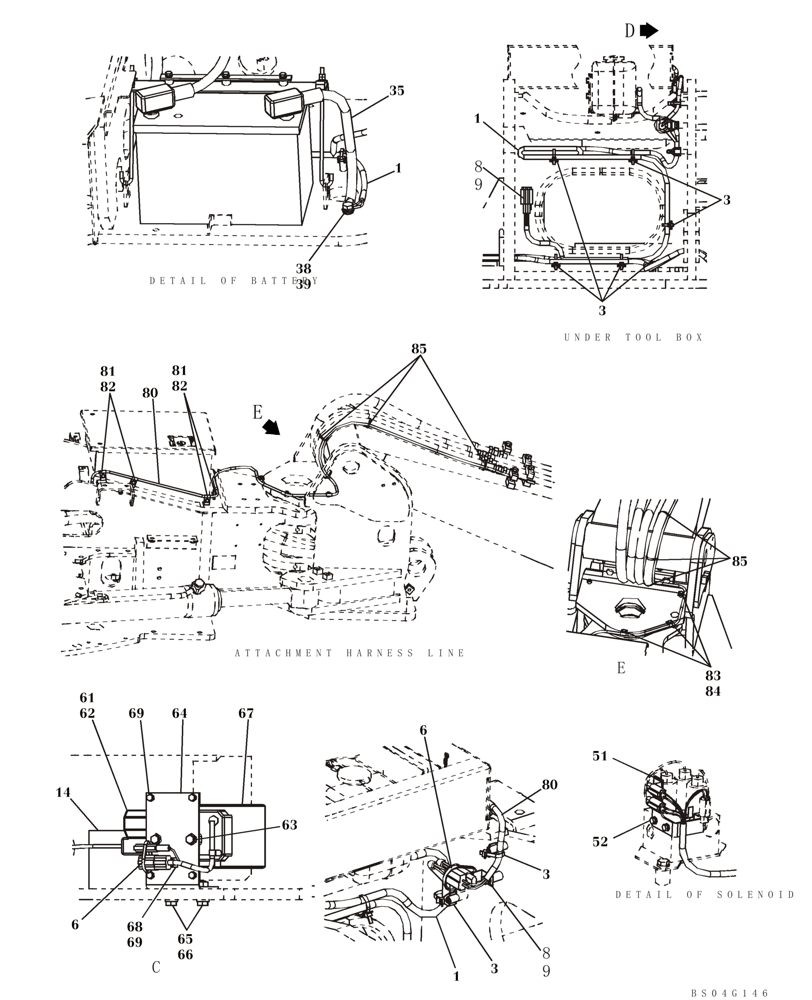

Запчасти Case CX80 (04-03) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS

1

KAR1501

WIRE HARNESS

Main

1шт.

3

KHR2787

CLAMP

8шт.

6

150496A1

MOUNTING CLIP

1шт.

8

165405A1

CLIP

2шт.

6

161100A1

MOUNTING CLIP

1шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

14

KAR1476

SEAL

1шт.

35

KAR1389

ELECTRIC CABLE

Battery

1шт.

38

KHJ2298

BOLT,Spcl

1шт.

39

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

51

KHR4219

BRACKET

1шт.

52

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

KHR3957

ELECTRIC MOTOR

Incl. 61, 62

1шт.

61

KHR13880

ELECTRIC MOTOR

Replaces KHR3896

1шт.

62

KHR3956

THROTTLE CONTROL

Cable

1шт.

63

166345A1

BOLT

2шт.

64

KAH11890

BRACKET

BRACKET, Replaces KAR1437

1шт.

65

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

66

150409A1

WASHER

2шт.

67

KAR1438

COVER

1шт.

68

165405A1

CLIP

1шт.

69

159602A1

BOLT,Sems, Hex, M6 x 16mm

5шт.

80

KAR1521

WIRE HARNESS

1шт.

81

157805A1

COLLAR

4шт.

82

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

Replaces 159602A1

4шт.

83

157805A1

COLLAR

3шт.

84

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

3шт.

85

150496A1

MOUNTING CLIP

1шт.
