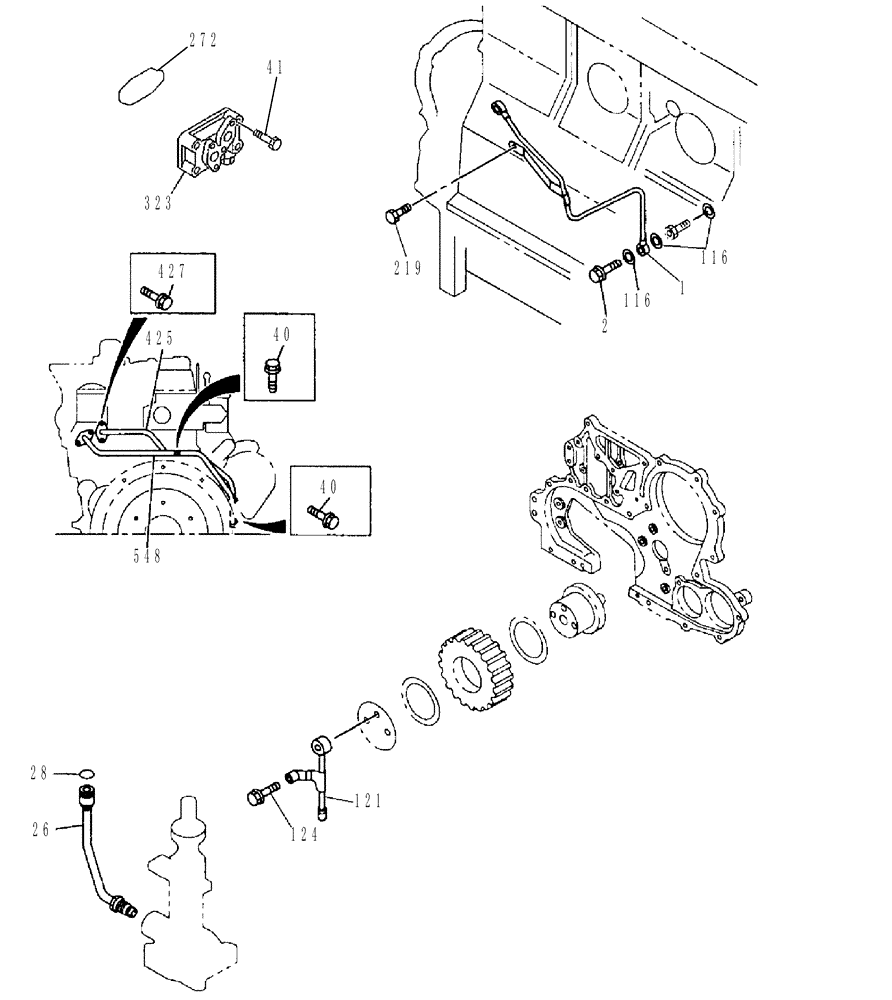

Запчасти Case CX80 (02-22) - OIL CIRCUIT (02) - ENGINE

1

355662A1

PIPE ASSY.

1шт.

2

355663A1

BANJO BOLT

M8 x 20

1шт.

26

355664A1

PIPE ASSY.

1шт.

28

289418A1

GASKET

1шт.

40

362154A1

BOLT

M8 x 18

2шт.

40

444031A1

BOLT

M10 x 12

2шт.

41

288985A1

BOLT

Mounts Relocation, Serial Range: Block-Engine

4шт.

116

289812A1

PACKING

3шт.

121

355665A1

PIPE ASSY.

1шт.

124

289015A1

BOLT

M8 x 22; 10.9

1шт.

219

355667A1

BOLT

M6 x 12; 10.9

1шт.

272

84157735

SEAL

Gasket Could be Used for Filter Head or Relocation Block

1шт.

323

87620514

COVER

Relocation Block

1шт.

323-1

87616585

O-RING

Not Shown

2шт.

425

86990199

PIPE

1шт.

427

288995A1

BOLT

M8 x 20-Mounts Tubes to Filter Head and Relocation Block

4шт.

548

86990201

PIPE

1шт.
