(09-49) - ARM CYLINDER MOUNTING - MODELS WITH STANDARD BOOM

Запчасти Case CX80 (09-49) - ARM CYLINDER MOUNTING - MODELS WITH STANDARD BOOM (09) - CHASSIS/ATTACHMENTS

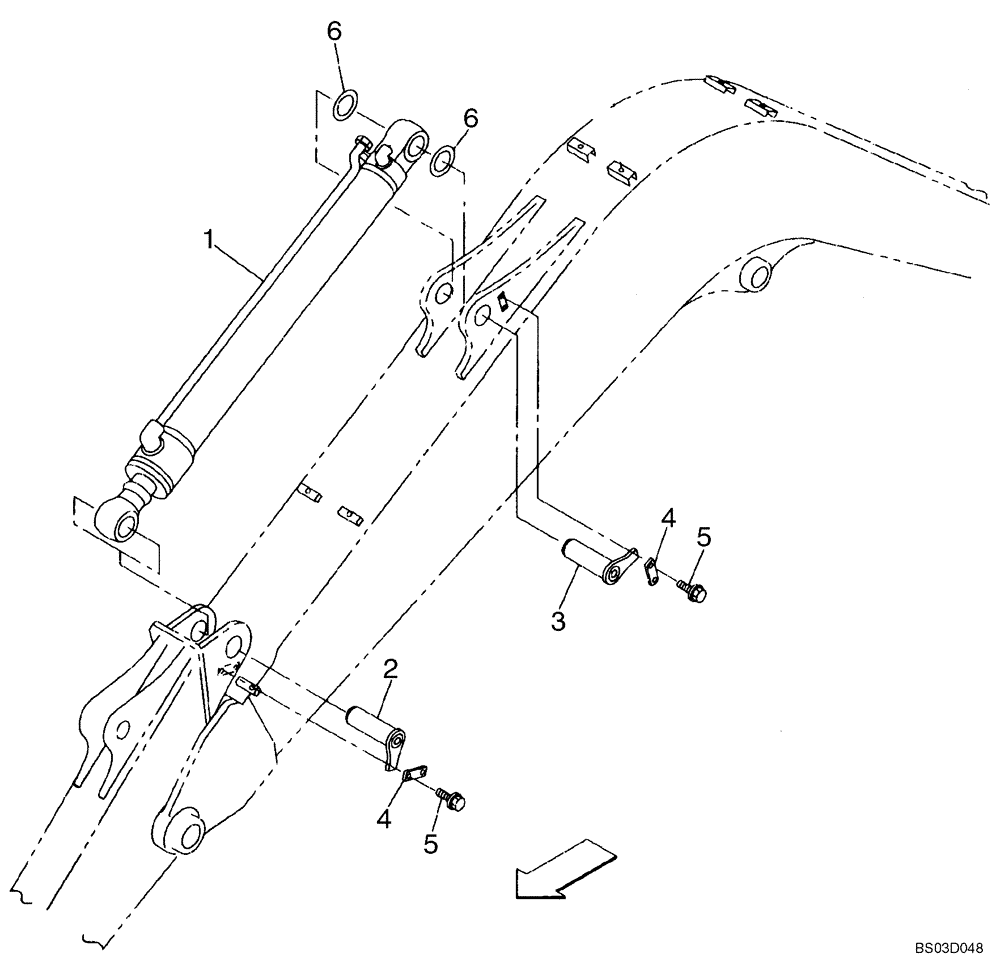

Схема запчастей Case CX80 - (09-49) - ARM CYLINDER MOUNTING - MODELS WITH STANDARD BOOM (09) - CHASSIS/ATTACHMENTS
4
4
6
3
6
5
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV2436

HYDRAULIC CYLINDER

Arm, Models Without Load Hold; See Figure 08-92

1шт.

1

KAV2437

HYDRAULIC CYLINDER

Arm, Models With Load Hold; See Figure 08-93

1шт.

2

KAV2466

PIN

1шт.

3

KAV2467

PIN

1шт.

4

KHV0456

PLATE

2шт.

5

166351A1

BOLT,Sems, M10 x 20mm

4шт.

6

166403A1

WASHER

1шт.

Выбрано товаров: 7
