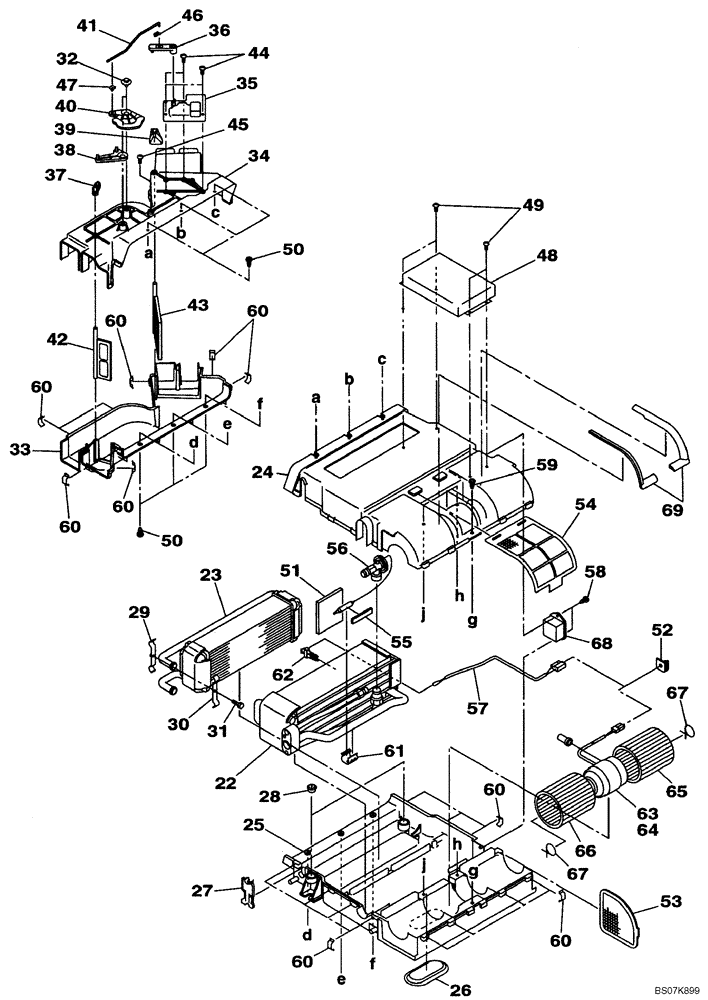

Запчасти Case CX80 (09-29) - HEATER - AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

KHR4029

UNIT HEATER

Incl. 22 - 66

1шт.

22

KHR3752

COOLER

1шт.

23

KHR3753

RADIATOR, HEATER

1шт.

24

KHR3754

CASE

1шт.

25

KHR3755

CASE

1шт.

26

KHR3756

GROMMET

1шт.

27

KHR3757

GROMMET

1шт.

28

KHR3758

PLUG

2шт.

29

KHR3759

RETAINER

1шт.

30

KHR3760

RETAINER

1шт.

31

KHR3780

BOLT,Spcl

1шт.

32

KHR2862

SELF-TAP SCREW

2шт.

33

KHR3763

CASE

1шт.

34

KHR3764

CASE

1шт.

35

KHR3765

ELECTRIC MOTOR

1шт.

36

KHR3766

LEVER

1шт.

37

KHR3767

LEVER

1шт.

38

KHR3768

LEVER

1шт.

39

KHR3769

LINK

1шт.

40

KHR3770

LINK

1шт.

41

KHR3771

ROD

1шт.

42

KHR3772

DAMPER

1шт.

43

KHR3773

DAMPER

1шт.

44

KHR3778

SCREW,Pan

4шт.

45

KHR3779

SCREW,Pan

1шт.

46

KHR3774

CLAMP

1шт.

47

KHR3775

HOLDER

1шт.

48

KHR4031

ECU

Replaces KHR3531; No Longer Availabe, For Service Order KHR11710 Control And KHR11670 Spacer

1шт.

48

KHR11710

ECU

1шт.

49

KHR11680

SCREW,M4 x 12mm

Replaces KHR3777

4шт.

50

KHR3776

SELF-TAP SCREW

6шт.

51

KHR3986

FOAM INSULATION

1шт.

52

KHR3987

GROMMET

1шт.

53

KHR10690

FILTER

Replaces KHR3988 Filter, Which Included (1) KHR10690 Filter and (1) KHR10700 Filter

1шт.

54

KHR3989

SCREEN

1шт.

55

KHR3990

SUPPORT

1шт.

56

KHR3992

VALVE

1шт.

57

KHR3993

THERMOMETER

1шт.

58

KHR3994

SCREW

2шт.

59

KHR3995

BOLT,Spcl

3шт.

60

KHR3996

CLAMP

18шт.

61

KHR3997

STAY

1шт.

62

KHR3998

HOLDER

1шт.

63

KHR3761

ELECTRIC MOTOR

Incl. 64 - 67

1шт.

64

NSS

NOT SOLD SEPARAT

Motor

1шт.

65

KHR4021

BLOWER

1шт.

66

KHR4022

BLOWER

1шт.

67

KHR4023

CLIP

Wire

2шт.

68

KHR3762

RESISTOR

1шт.

69

KHR10680

SEAL PROTECTION

Packing

1шт.
