(09-25) - CONSOLE, CONTROL - OPERATORS COMPARTMENT

Запчасти Case CX80 (09-25) - CONSOLE, CONTROL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

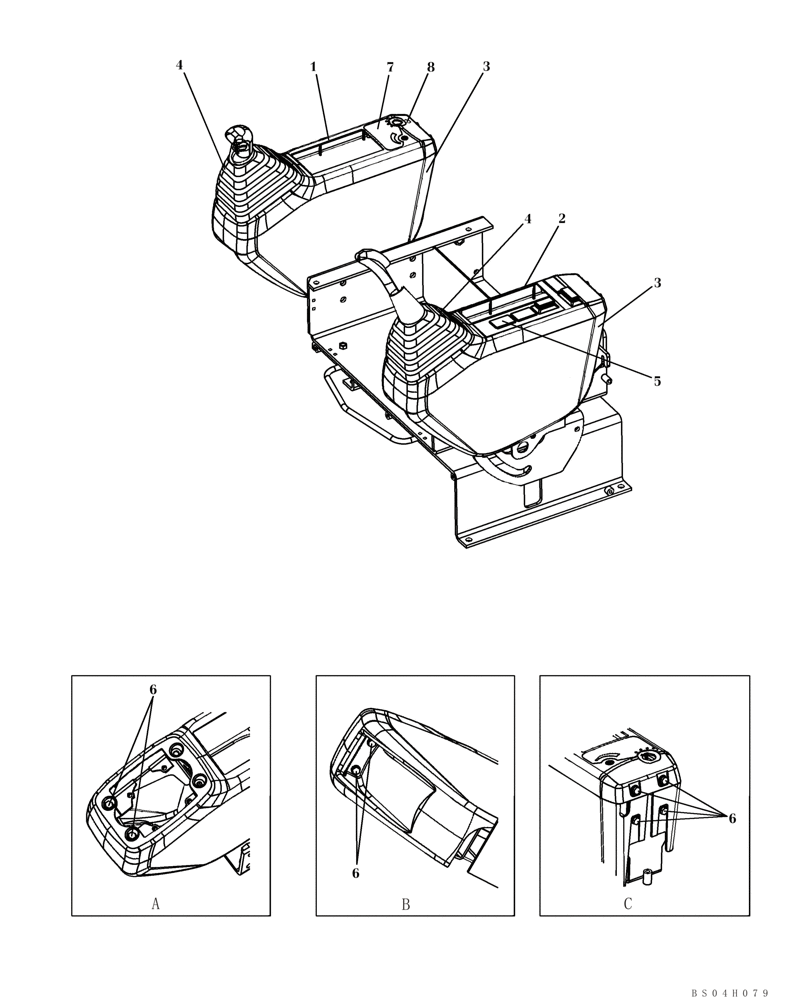

Схема запчастей Case CX80 - (09-25) - CONSOLE, CONTROL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS
8
bs04h079
c
4
7
2
4
6
1
6
5
3
3
a
b
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN3523

COVER

Top Right Hand

1шт.

2

KHN2884

COVER

Top Left Hand

1шт.

3

KHN2885

COVER

2шт.

4

KHN16760

BELLOWS

Replaces KHN3680

2шт.

5

KHR2913

CAP

1шт.

6

KHN2132

BOLT,Hex Flg Hd, M6 x 16

16шт.

7

KHN3525

PANEL

1шт.

8

KHN3524

PLUG

1шт.

Выбрано товаров: 8
