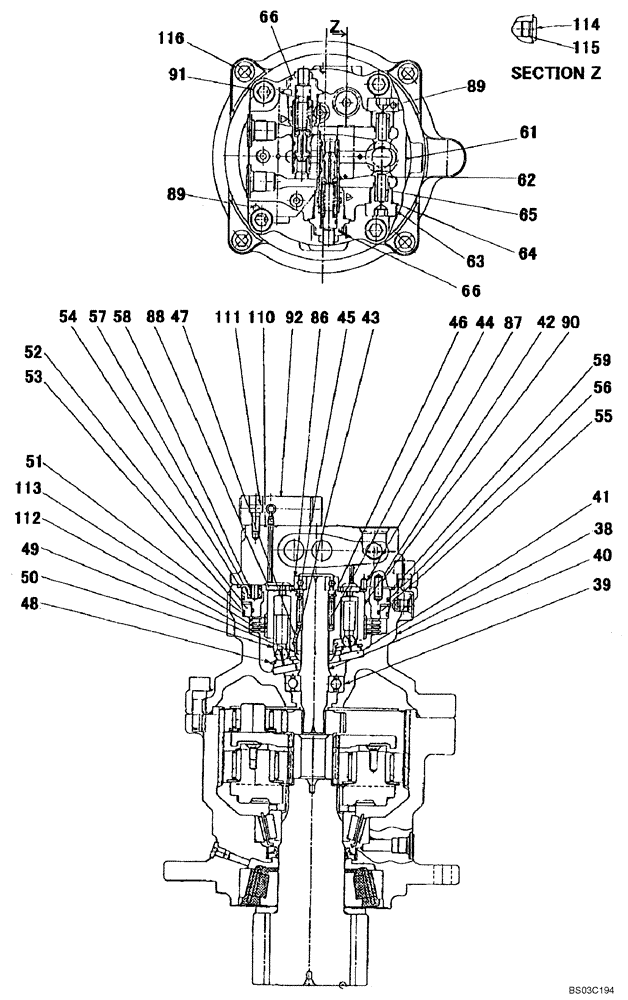

Запчасти Case CX80 (08-65) - MOTOR ASSY - SWING (08) - HYDRAULICS

KAC0177

MOTO-REDUCTION GEAR

Incl. 38 - 116; Also Includes Parts on Figure 08-64, 08-66

1шт.

38

LW00373

HOUSING

1шт.

39

LTM0200

BALL BEARING

1шт.

40

LB00764

SHAFT

1шт.

41

LR00833

THRUST PLATE

1шт.

42

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

43

NSS

NOT SOLD SEPARAT

Collar

1шт.

44

NSS

NOT SOLD SEPARAT

Spring, Compression

1шт.

45

NSS

NOT SOLD SEPARAT

Spacer

1шт.

46

800-2140

SNAP RING,M40, Int

1шт.

47

NSS

NOT SOLD SEPARAT

Pin

3шт.

48

NSS

NOT SOLD SEPARAT

Plate

1шт.

49

NSS

NOT SOLD SEPARAT

Holder

1шт.

50

NSS

NOT SOLD SEPARAT

Piston

9шт.

51

LR00832

PLATE

1шт.

52

LH00316

COLLAR

1шт.

53

154805A1

O-RING

1шт.

54

LJ00920

JACK PISTON

1шт.

55

154777A1

O-RING

1шт.

56

LBQ6257

O-RING

1шт.

57

LG00418

COMPRESSION SPRING

12шт.

58

LG00419

COMPRESSION SPRING

8шт.

59

LBM0120

O-RING

1шт.

61

LW00374

COVER

1шт.

62

LJ00921

POPPET

2шт.

63

LK00366

PLUG

2шт.

64

154495A1

O-RING

2шт.

65

LG00420

COMPRESSION SPRING

2шт.

66

LJ00922

VALVE, PRESSURE RELI

EF See Figure 08-66

2шт.

85

TIP0001143

ORIFICE

Not Illustrated

1шт.

86

LTM0201

ROLLER BEARING

1шт.

87

155632A1

COTTER PIN

1шт.

88

LPM0213

PLATE

1шт.

89

LA00816

DOWEL

2шт.

90

LMM0397

DOWEL

2шт.

91

861-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

92

LJ00924

VALVE

See Figure 08-66

1шт.

110

154463A1

O-RING

3шт.

111

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

3шт.

112

LC00197

DISC

1шт.

113

LR00836

PLATE

2шт.

114

LK00068

PLUG

1шт.

115

154475A1

O-RING

1шт.

116

861-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

LZ00491

SEAL KIT

Hydraulic Motor; Incl. 53, 55, 56, 59, 64, 110, 115; Also Includes Parts on Figure(s) 08-64, 08-66

1шт.

LZ00492

REPAIR KIT

Incl. 42, 50

1шт.
