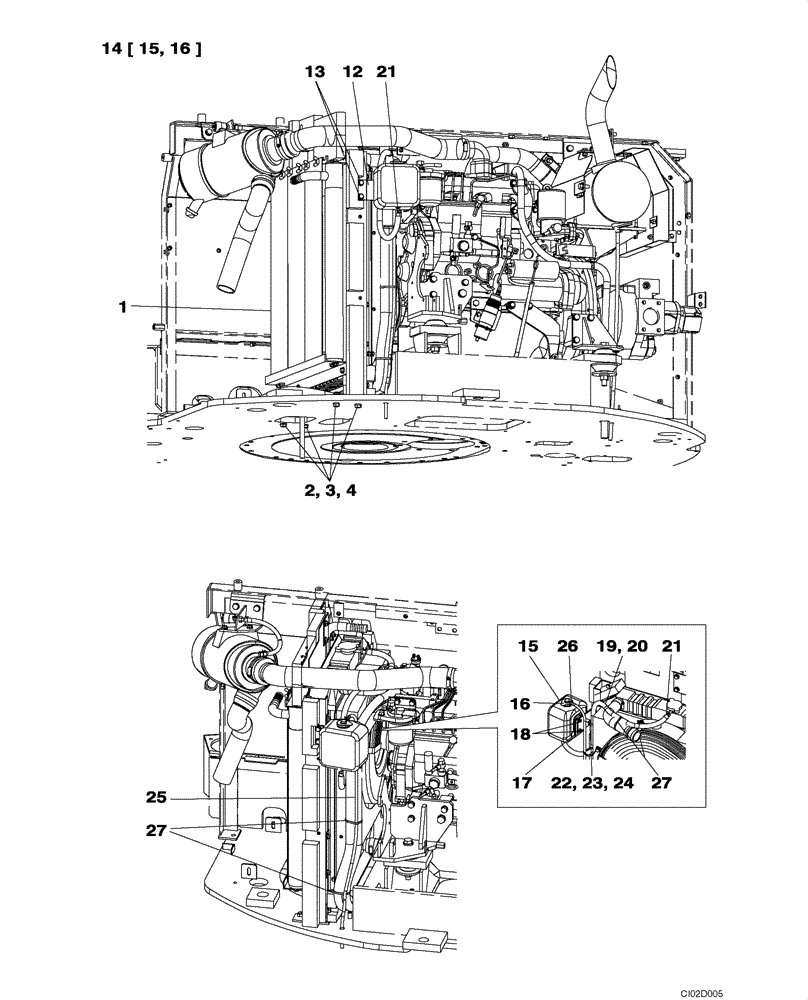

Запчасти Case CX80 (02-06) - RADIATOR AND CONNECTIONS (02) - ENGINE

1

KAH1348

RADIATOR

See Figure 02-05, 02-06A

1шт.

2

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

3

150409A1

WASHER

10,5 x 21 x 3,2 mm

4шт.

4

KMJ1897

SHIM,0.8mm Thk

2шт.

12

KAH1372

BRACKET

1шт.

13

166345A1

BOLT

2шт.

14

167602A1

RESERVOIR, COOLANT E

Incl. 15, 16

1шт.

15

167818A1

TANK

1шт.

16

167819A1

CAP

1шт.

17

167589A1

SUPPORT

1шт.

18

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

19

KHH0356

HOSE

1шт.

20

157692A1

PLASTIC-RUBBER TUBE

1шт.

21

165951A1

CLAMP

2шт.

22

150860A1

COLLAR

1шт.

23

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

24

150496A1

MOUNTING CLIP

1шт.

25

KHH0499

HOSE

1шт.

26

165952A1

MOUNTING CLIP

1шт.

27

150496A1

MOUNTING CLIP

1шт.
