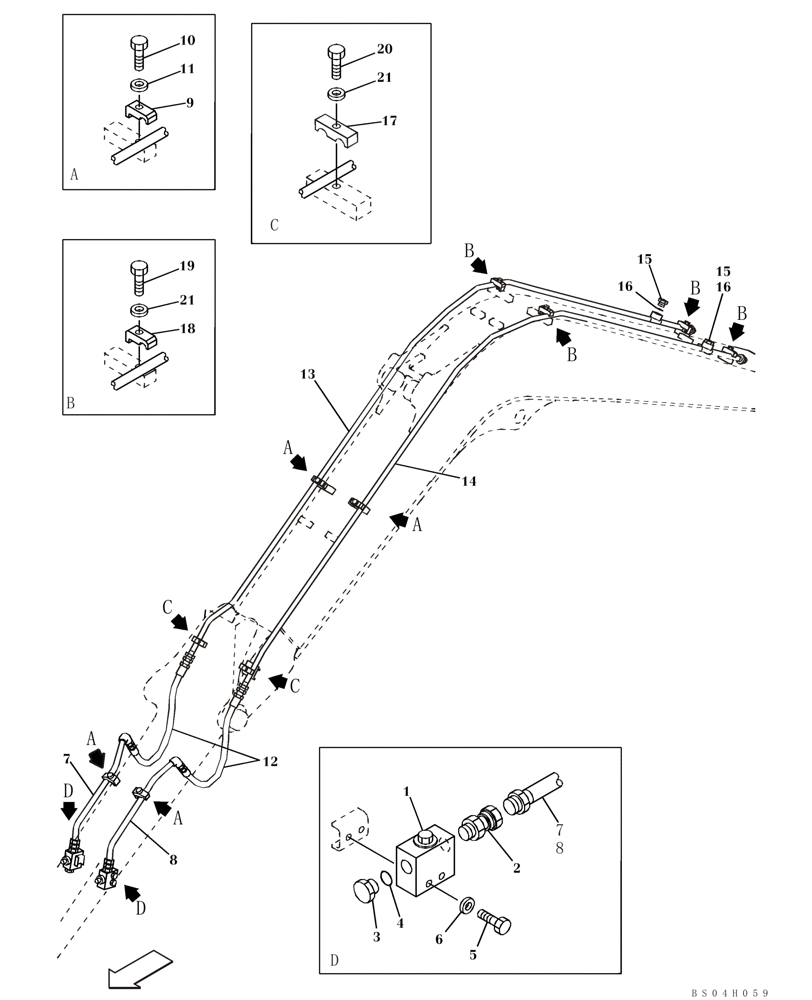

Запчасти Case CX80 (08-56) - HYDRAULICS, AUXILIARY ATTACHMENT - 1,70 M (5 FT 7 IN) ARM (08) - HYDRAULICS

1

KHV10680

VALVE SECTION

Stop; Replaces KHV0453

2шт.

2

167248A1

FITTING

2шт.

3

152924A1

PLUG

Incl. 4

2шт.

4

154503A1

O-RING

1шт.

5

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

6

150811A1

WASHER

4шт.

7

KAV12880

HYD TUBE

Replaces KAV2520

1шт.

8

KAV12890

HYD TUBE

Replaces KAV2521

1шт.

9

166401A1

HALF-FLANGE

4шт.

10

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

11

150811A1

WASHER

4шт.

12

KAV2642

HYDRAULIC HOSE,15.90 mm ID x 920.00 mm

2шт.

13

KAV10410

HYD TUBE

KAV2775

1шт.

14

KAV10420

HYD TUBE

KAV27756

1шт.

15

152924A1

PLUG

Incl. 16

2шт.

16

154503A1

O-RING

1шт.

17

KAV1583

COLLAR

2шт.

18

166401A1

HALF-FLANGE

4шт.

19

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

20

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

2шт.

21

150811A1

WASHER

8шт.
