(08-55) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT

Запчасти Case CX80 (08-55) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (08) - HYDRAULICS

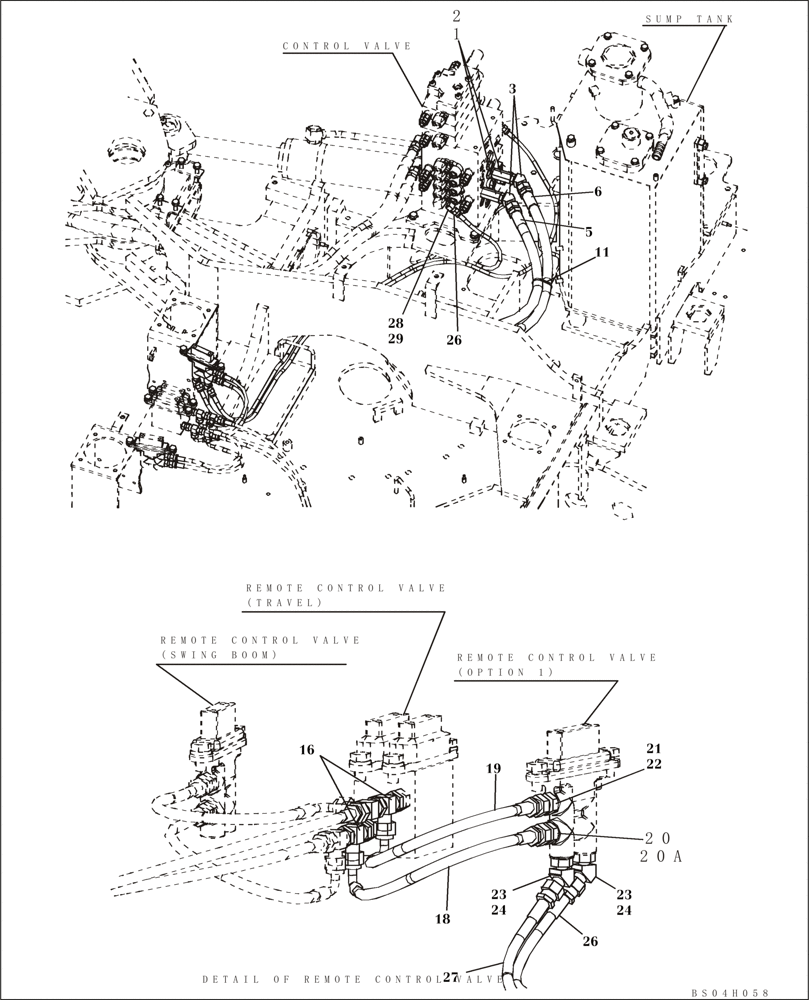

Схема запчастей Case CX80 - (08-55) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (08) - HYDRAULICS
sump tank
19
(travel)
28
20a
1
24
18
23
3
2
(option 1)
26
remote control valve
remote control valve
(swing boom)
21
11
6
control valve
20
29
24
26
5
remote control valve
23
27
detail of remote control valve
22
bs04h058
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1070

STUD

Incl. 2

2шт.

2

154487A1

O-RING

1шт.

3

163005A1

ELBOW

2шт.

5

KAJ5139

HYDRAULIC HOSE,15.9mm ID x 3400mm L

See Figure 08-54

1шт.

6

KAJ5166

HYDRAULIC HOSE,15.88 mm ID x 3500.00 mm

1шт.

11

150496A1

MOUNTING CLIP

1шт.

16

KHJ2130

TEE

2шт.

18

KHJ2084

HOSE

1шт.

19

KHJ2238

HOSE

1шт.

20

161841A1

HYD CONNECTOR

Incl. 20A

1шт.

20a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

150933A1

ELBOW

Incl. 24

2шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

KHJ2058

HOSE

1шт.

27

KHJ2064

HOSE

See Figure 08-54

1шт.

28

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
