(08-54) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT

Запчасти Case CX80 (08-54) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (08) - HYDRAULICS

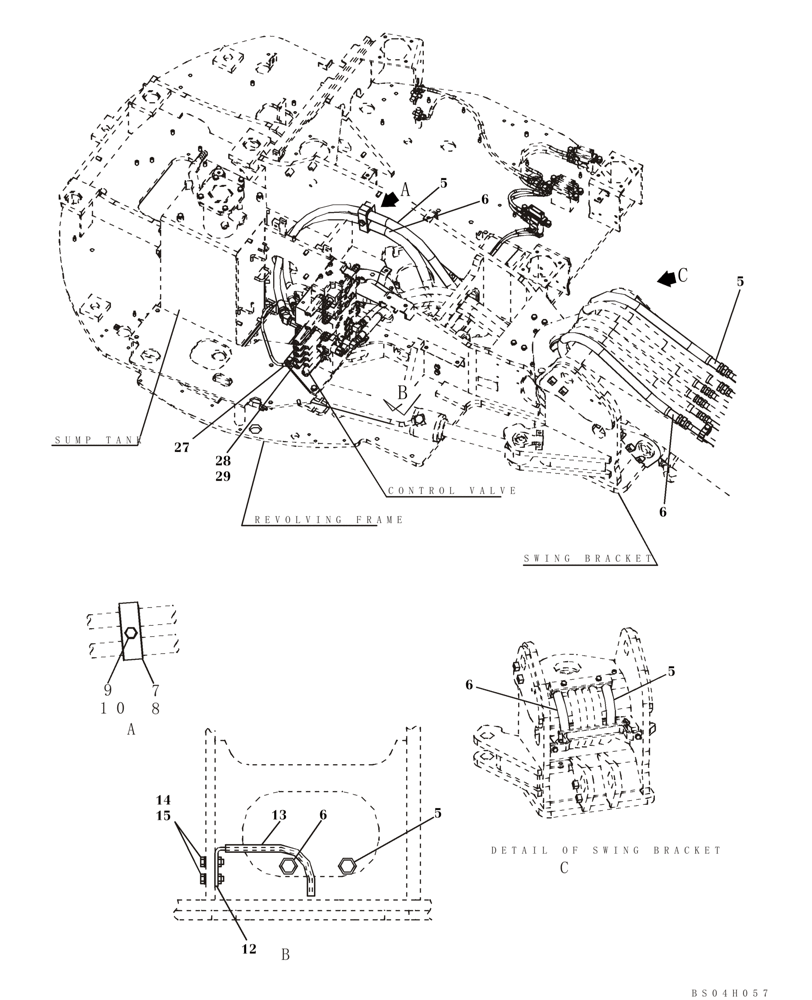

Схема запчастей Case CX80 - (08-54) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (08) - HYDRAULICS
revolving frame
swing bracket
29
28
6
6
c
control valve
b
15
detail of swing bracket
a
12
6
27
6
a
bs04h057
7
10
5
5
8
14
5
sump tank
5
13
c
b
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

5

KAJ5139

HYDRAULIC HOSE,15.9mm ID x 3400mm L

See Figure 08-55

1шт.

6

KAJ5166

HYDRAULIC HOSE,15.88 mm ID x 3500.00 mm

See Figure 08-55

1шт.

7

KAJ5183

HOSE CLAMP

2шт.

8

KAJ5156

PLATE

1шт.

9

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

10

150811A1

WASHER

1шт.

12

KAJ5199

HOLDER

1шт.

13

162189A1

GROMMET

1шт.

14

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

15

150409A1

WASHER

2шт.

27

KHJ2064

HOSE

See Figure 08-55

1шт.

28

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
