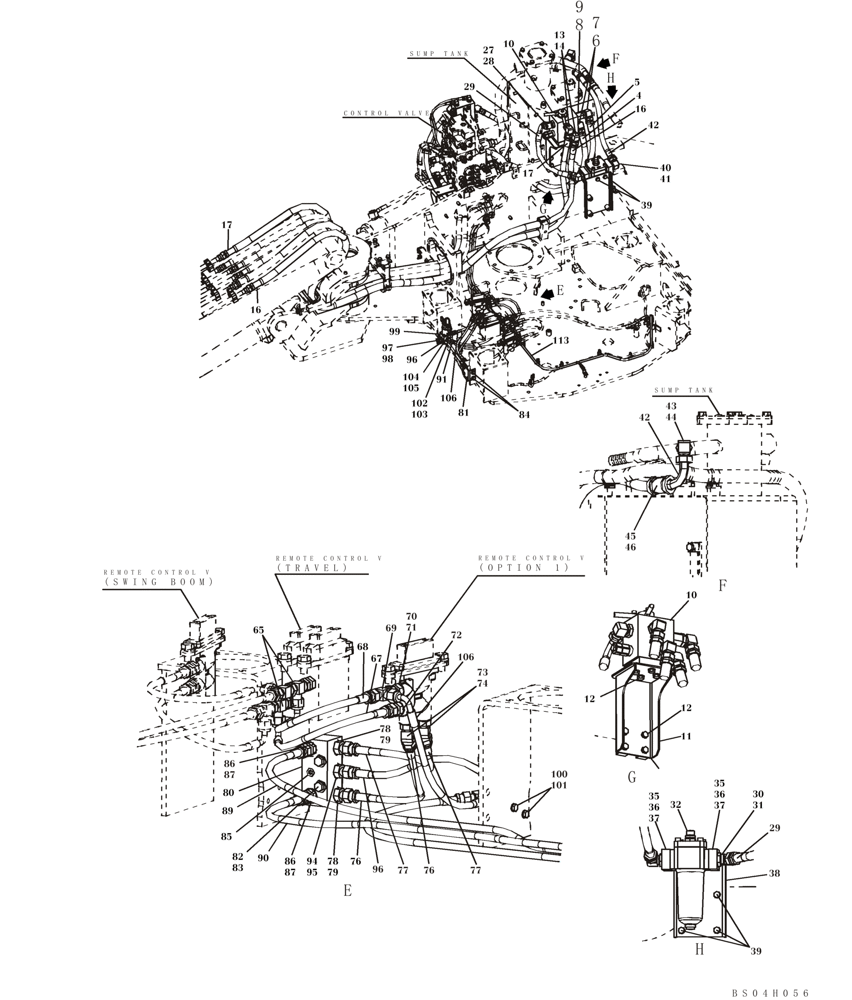

Запчасти Case CX80 (08-53) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

4

KAJ5136

HYDRAULIC HOSE,15.88 mm ID x 850.00 mm

See Figure 08-52

1шт.

5

KAJ5137

HYDRAULIC HOSE,15.88 mm ID x 1000.00 mm

See Figure 08-52

1шт.

6

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 7

2шт.

7

154503A1

O-RING

1шт.

8

152012A1

ELEC CONNECTOR

Incl. 9

1шт.

9

154503A1

O-RING

1шт.

10

KHJ2020

HYDRAULIC VALVE

See Figure 08-78

1шт.

11

KAJ5144

HOLDER

1шт.

12

166351A1

BOLT,Sems, M10 x 20mm

8шт.

13

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 14

2шт.

14

154503A1

O-RING

1шт.

16

KAJ5138

HYDRAULIC HOSE,15.88 mm ID x 3300.00 mm

See Figure 08-51

1шт.

17

KAJ5139

HYDRAULIC HOSE,15.9mm ID x 3400mm L

See Figure 08-51

1шт.

27

UCJ0991

ELBOW

Incl. 28

1шт.

28

154503A1

O-RING

1шт.

29

KAJ4760

HYDRAULIC HOSE

1шт.

30

157586A1

ELBOW

Incl. 31

1шт.

31

154503A1

O-RING

1шт.

32

163278A1

FILTER

See Figure 08-98

1шт.

35

154569A1

O-RING

2шт.

36

163275A1

FLANGE

2шт.

37

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

8шт.

38

KAJ5145

HOLDER

1шт.

39

166351A1

BOLT,Sems, M10 x 20mm

5шт.

40

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 41

1шт.

41

154503A1

O-RING

1шт.

42

KNJ2077

HYDRAULIC HOSE,19.00 mm ID x 720.00 mm

1шт.

43

UCJ0991

ELBOW

Incl. 44, Replaces 157580A1

1шт.

44

154503A1

O-RING

1шт.

45

KHJ2023

HOSE CLAMP

1шт.

46

150496A1

MOUNTING CLIP

2шт.

65

KHJ2130

TEE

2шт.

67

KHJ2084

HOSE

1шт.

68

KHJ2238

HOSE

1шт.

69

KHJ2130

TEE

1шт.

70

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 71

1шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

161841A1

HYD CONNECTOR

1шт.

73

150933A1

ELBOW

Incl. 74

2шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

76

KHJ2237

HOSE

1шт.

77

KHJ2044

HOSE,6.3mm ID x 350mm L

1шт.

78

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 78

2шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

80

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

81

KAJ4715

BRACKET

1шт.

82

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

83

153081A1

WASHER

2шт.

84

166346A1

BOLT,Sems, M10

2шт.

85

150821A1

PLUG

1шт.

86

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 87

2шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

KHJ2063

HOSE

See Figure 08-52

1шт.

90

KHJ2067

HOSE

See Figure 08-52

1шт.

91

KHJ2069

HOSE

See Figure 08-52

1шт.

94

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 95

1шт.

95

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

96

KHJ2042

HOSE

1шт.

97

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 98

1шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

KHJ1714

SOLENOID VALVE

See Figure 08-85

1шт.

99

KHJ1714

SOLENOID VALVE

See Figure 08-94

1шт.

100

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

101

183-106VR

SPRING WASHER

2шт.

102

150933A1

ELBOW

Incl. 103

1шт.

103

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

104

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 105

1шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

KHJ2238

HOSE

1шт.

113

KAR1434

WIRE HARNESS

See Figure 08-51

1шт.
