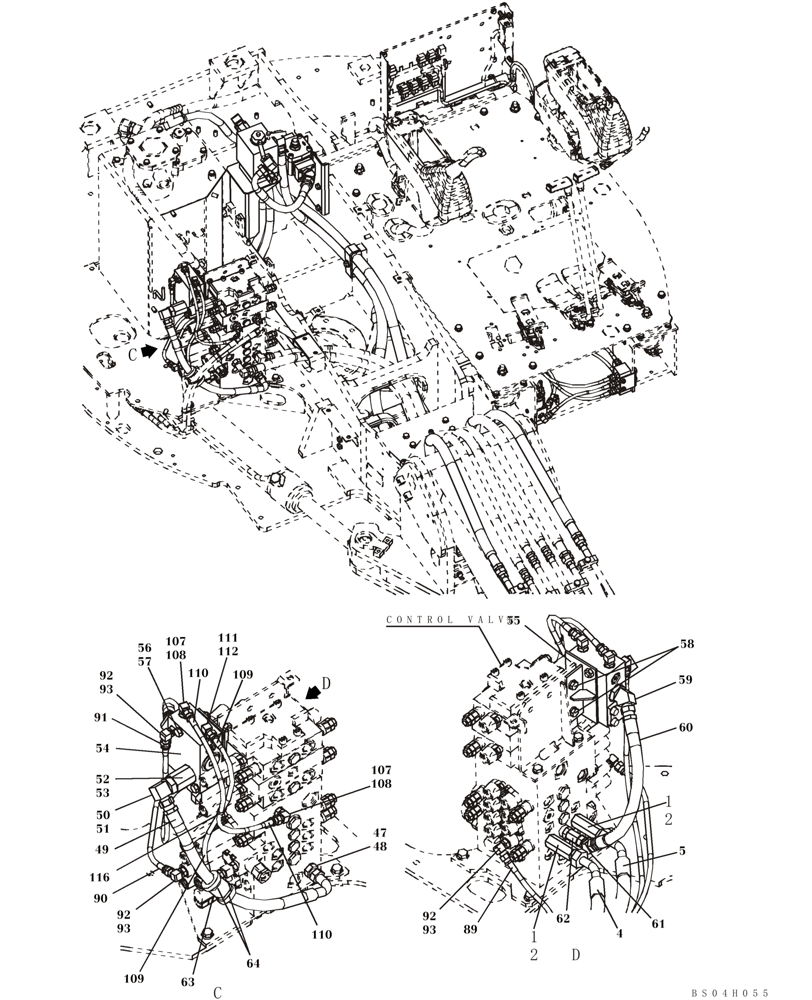

Запчасти Case CX80 (08-52) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

1

163287A1

STUD

Incl. 2

2шт.

2

154487A1

O-RING

1шт.

4

KAJ5136

HYDRAULIC HOSE,15.88 mm ID x 850.00 mm

See Figure 08-53

1шт.

5

KAJ5137

HYDRAULIC HOSE,15.88 mm ID x 1000.00 mm

See Figure 08-53

1шт.

47

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 48

1шт.

48

154487A1

O-RING

1шт.

49

KAJ4721

HYDRAULIC HOSE,12.70 mm ID x 560.00 mm

1шт.

50

157936A1

ELBOW

Incl. 51

1шт.

51

154503A1

O-RING

1шт.

52

152012A1

ELEC CONNECTOR

Incl. 53

1шт.

53

154503A1

O-RING

1шт.

54

KHJ1473

VALVE

See Figure 08-84

1шт.

55

KAJ4714

BRACKET

1шт.

56

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

57

892-11010

LOCK WASHER,M10

2шт.

58

166052A1

BOLT

2шт.

59

KHJ2243

ELBOW

1шт.

60

KAJ5140

HYDRAULIC HOSE,12.70 mm ID x 420.00 mm

1шт.

61

163004A1

ELBOW

1шт.

62

KHV0373

STUD

1шт.

63

KHJ2022

HOSE CLAMP

1шт.

64

150496A1

MOUNTING CLIP

3шт.

89

KHJ2063

HOSE

See Figure 08-53

1шт.

90

KHJ2067

HOSE

See Figure 08-53

1шт.

91

KHJ2069

HOSE

See Figure 08-53

1шт.

92

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 93

3шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

107

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 108

2шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

KHJ2179

HOSE

1шт.

110

KHJ2142

HOSE

1шт.

111

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 112

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

116

150496A1

MOUNTING CLIP

1шт.
