(08-49) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT

Запчасти Case CX80 (08-49) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

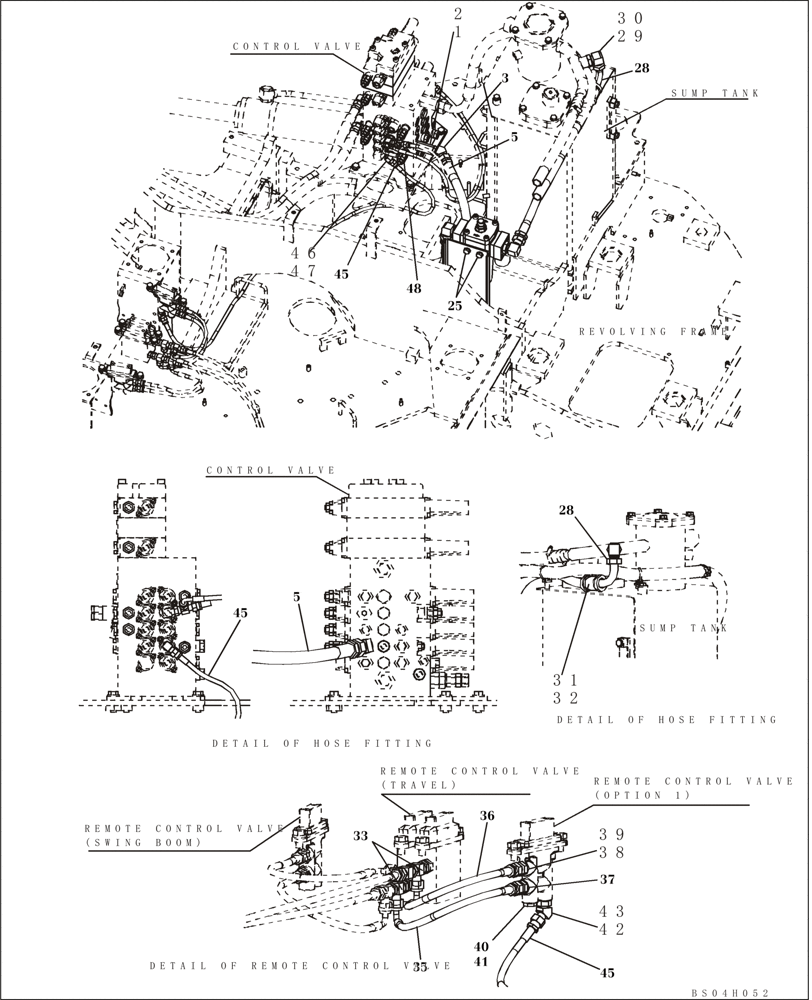

Схема запчастей Case CX80 - (08-49) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT (08) - HYDRAULICS
sump tank
43
detail of hose fitting
38
control valve
35
40
47
(swing boom)
46
bs04h052
45
48
28
42
25
37
45
28
remote control valve
1
32
(option 1)
5
revolving frame
5
sump tank
control valve
30
remote control valve
36
39
41
remote control valve
29
(travel)
33
31
45
2
detail of remote control valve
3
detail of hose fitting
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1070

STUD

Incl. 2

1шт.

2

154487A1

O-RING

1шт.

3

163005A1

ELBOW

1шт.

5

KAJ5139

HYDRAULIC HOSE,15.9mm ID x 3400mm L

See Figure 08-50

1шт.

25

166351A1

BOLT,Sems, M10 x 20mm

2шт.

28

KNJ2077

HYDRAULIC HOSE,19.00 mm ID x 720.00 mm

See Figure 08-50

1шт.

29

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 30

1шт.

30

154503A1

O-RING

1шт.

31

KHJ2023

HOSE CLAMP

1шт.

32

150496A1

MOUNTING CLIP

1шт.

33

KHJ2130

TEE

2шт.

35

KHJ2084

HOSE

1шт.

36

KHJ2238

HOSE

1шт.

37

161841A1

HYD CONNECTOR

1шт.

38

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 39

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

159002A1

PLUG

Incl. 41

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

42

150933A1

ELBOW

Incl. 43

1шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

KHJ2058

HOSE

1шт.

46

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 47

1шт.

47

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

48

KAJ4877

VALVE PRESSURE RELIE

1шт.
